YAMAHA RX-A6A 9.2 Channel Dolby Atmos Av Receiver Black

Yamaha RX-A6A AV Receiver – Precision, Power and Cinematic Realism

The Yamaha RX-A6A is engineered for home cinema enthusiasts who demand uncompromising performance. Delivering exceptional audio processing, robust amplification and leading-edge video support, this 9.2-channel AV receiver turns every film, game and soundtrack into an immersive experience. With meticulous structural refinement and advanced signal handling, the RX-A6A is built to reveal every detail—whether it’s the quietest whisper or the most explosive on-screen moment.

Intelligent Surround Processing with Surround:AI™

Yamaha’s exclusive Surround:AI™ uses 64-bit processing to analyse scenes in real time, adjusting background ambience, dialogue clarity and sound effects with precision. Powered by the Qualcomm® QCS407 chipset, it acts like an expert sound mixer, optimising your audio for every frame.

Engineered for Absolute Clarity

The RX-A6A features Yamaha’s latest Anti Resonance Technology (A.R.T.), an H-shaped cross frame and a reinforced mechanical chassis. These innovations combat internal and external vibrations, ensuring the receiver remains remarkably still—preserving sonic purity and delivering pristine detail across the entire frequency range.

High-Performance Digital Architecture

Premium SABRE ES9026PRO and ES9007S DACs deliver stunning dynamic range and exceptionally low noise, creating studio-grade audio performance. Combined with support for Dolby Atmos®, DTS:X®, and the deeply immersive AURO-3D®, the RX-A6A builds a rich, layered soundstage that envelops your entire room.

Cutting-Edge Video Capability

With support for 8K/60Hz and 4K/120Hz, the RX-A6A ensures flawless motion, superb clarity and ultra-realistic picture quality. HDR10+ compatibility adds dynamic contrast and faithful colour reproduction, letting you experience content exactly as creators intended.

Gamers benefit from ALLM and VRR, offering smoother responsiveness and seamless on-screen transitions. Multiple HDMI inputs all support the latest standards, allowing several next-generation consoles and sources to be connected simultaneously.

Effortless Control and Multi-Room Audio

With the MusicCast app, you can stream music throughout your home, manage settings and control connected devices directly from your phone. The receiver also supports Alexa, Google Assistant, and Siri via AirPlay 2, giving you convenient voice-activated operation.

Precision Room Calibration

Yamaha’s advanced YPAO™-R.S.C. analyses room acoustics, speaker placement and sound reflections across multiple measurement points. It then applies 64-bit high-precision EQ adjustments to optimise performance for Dolby Atmos®, DTS:X® and Surround:AI™, ensuring your system always sounds its best.

Flexible Wireless Speaker Support

Pair compatible MusicCast 20 or MusicCast 50 speakers for a cable-free rear channel setup. This allows you to position speakers exactly where you want them—without compromising décor or layout.

Crafted for Performance and Style

The RX-A6A pairs Yamaha’s signature build quality with modern industrial design. Its clean lines, robust construction and intuitive interface make it a standout centrepiece for any premium home cinema system.

Technical specifications — Yamaha RX-A6A (Black)

Size & Weight

• Dimensions (HxWxD): 192 × 435 × 442 mm

• Dimensions with antenna up (HxWxD): 271 × 435 × 442 mm

• Weight: 20.3 kg

Amplifier section

• Channels: 9.2

• Rated output power (1 kHz, 1ch driven): 185 W (8 Ω, 0.9% THD)

• Rated output power (20 Hz–20 kHz, 2ch driven): 150 W (8 Ω, 0.06% THD)

• Maximum effective output power (1 kHz, 1ch driven): 220 W (8 Ω, 10% THD)

• High slew rate amplifier: Yes

Surround sound processing

• SURROUND:AI™: Yes

• CINEMA DSP: Yes (HD3)

• DSP programs: 24

• Dialog level adjustment: Yes

• Virtual presence speaker: Yes

• Virtual surround back speaker: Yes

• Dialogue Lift: Yes

• SILENT CINEMA / Virtual CINEMA DSP: Yes

• Dolby Atmos: Yes

• Dolby Atmos Height Virtualizer: Yes

• Dolby TrueHD: Yes

• Dolby Digital Plus: Yes

• Dolby Surround: Yes

• DTS:X: Yes

• DTS-HD Master Audio: Yes

• AURO-3D: Yes

Audio features

• Supported file formats:
  MP3 / WMA / MPEG-4 AAC, ALAC up to 96 kHz / 24-bit, FLAC up to 384 kHz / 24-bit, WAV/AIFF up to 384 kHz / 32-bit, DSD up to 11.2 MHz

• Pure Direct: Yes

• Compressed Music Enhancer: Yes

• High-resolution Music Enhancer: Yes

• YPAO multi-point measurement: Yes (with R.S.C., 3D, 64-bit high precision EQ calculation and angle measurement)

• YPAO Volume: Yes

• Adaptive DRC (Dynamic Range Control): Yes

• Initial & Maximum Volume setting: Yes

• A.R.T. Wedge: Yes

• Bi-amp capability: Yes

• Audio delay: Yes (0–500 ms)

• DA converter: 384 kHz / 32-bit ESS Hyperstream DAC — ES9026PRO ×1, ES9007S ×1

Video features

• HDMI eARC / HDMI ARC: Yes

• HDMI pass-through: 8K60AB, 4K120AB, 40 Gbps

• HDMI up-scaling: Yes, up to 8K

• HDMI up-conversion (Analog → HDMI): Yes

• Dolby Vision: Yes

• HDR10+: Yes

• VRR / ALLM: Yes

• Video adjustment: Yes

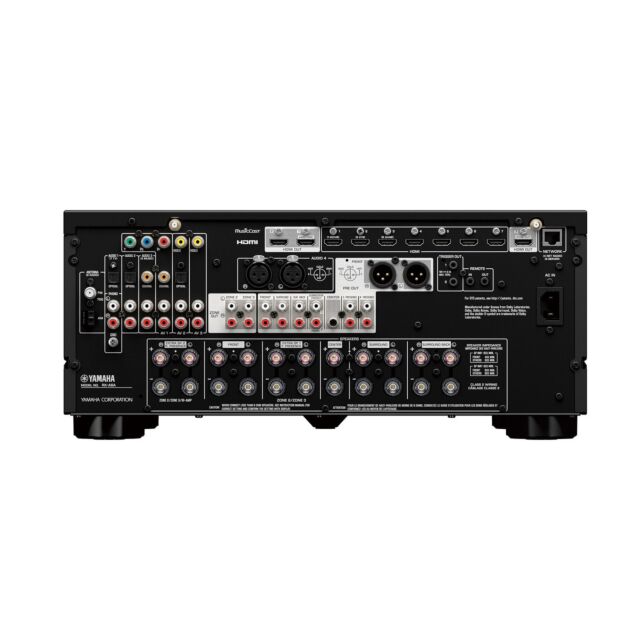

Connectivity

• MusicCast Surround: Yes

• HDMI inputs / outputs: 7 / 3 (HDCP 2.3)

• HDMI CEC: Yes

• USB input (front): Yes

• Network port: Yes

• Wi-Fi: Yes (2.4 / 5 GHz)

• AirPlay 2: Yes

• Bluetooth: Yes (SBC / AAC)

• Front AV input: USB

• Optical digital inputs / outputs: 3 / 0

• Coaxial digital inputs / outputs: 2 / 0

• Analog audio inputs / outputs: 6 / 0

• Phono input: Yes

• XLR terminal: Yes

• Component video input / output: 1 / 0

• Composite video input / output: 2 / 0

• Preouts: 11.2-ch

• Headphone output: 1

Tuner

• FM/AM tuner: Yes (availability varies by region)

• DAB tuner: Yes (availability varies by region)

User interface & control

• On-screen display: Graphical user interface

• SCENE: SCENE PLUS (8 sets)

• App control: Yes (iPhone / iPad / Android)

• Web browser control: Yes

• Remote control: Yes

Zone control

• Zone 2 audio output: Preout / HDMI

• Zone 3 audio output: Preout

• Zone 4 audio output: HDMI

• Powered zone: Zone 2 / 3

• Zone video output: HDMI (up to 4K/60Hz)

• Zone B output: HDMI

• Zone GUI: Yes

• +12 V trigger outputs: 2

• Remote (IR) input / output: 1 / 1

• Party mode: Yes

Power & general

• Standby power consumption (IR only): < 0.4 W

• Auto power standby: Yes

• ECO mode: Yes
