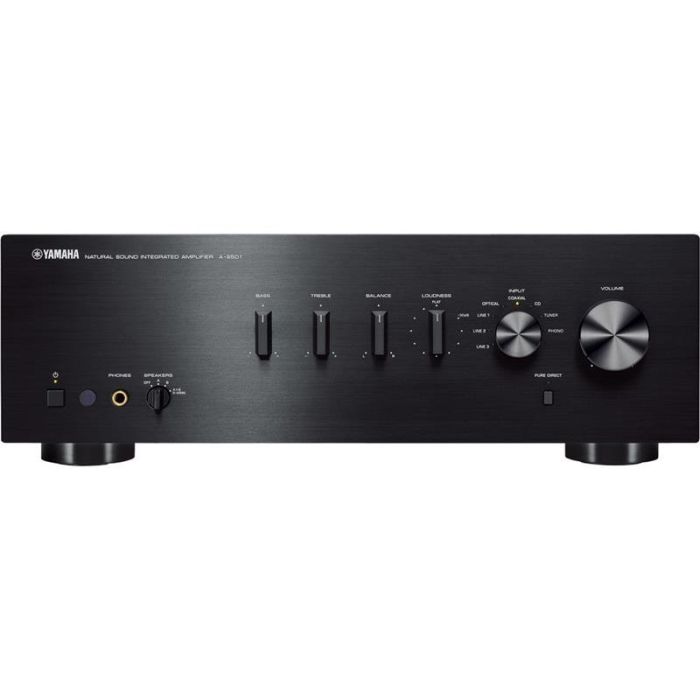

Yamaha AS501 MK2 Integrated Stereo Amplifier In Black

240W High-Performance Audio Amplifier with ToP-ART Technology

Unleash the Power of High-End Audio

Designed to deliver a dynamic and immersive listening experience, this amplifier offers 240W of total power for crisp, clear, and powerful sound. With advanced features like ToP-ART (Total Purity Audio Reproduction Technology) and a sophisticated, professional design, this amplifier ensures top-tier audio performance for your home audio system.

Key Features

High Power Output

• With a maximum output of 120W per channel (4 ohms) and an RMS of 85W per channel (8 ohms), this amplifier provides ample power to drive your speakers and deliver rich, clear sound at both low and high volumes.

ToP-ART Technology

• ToP-ART ensures Total Purity Audio Reproduction, delivering superior sound clarity with minimal distortion. This feature optimizes signal integrity from input to output, ensuring a premium listening experience.

Sophisticated Design and Quality Construction

• The I/O Direct Symmetrical Design and ART Base (Anti-Resolution and Tough) provide enhanced durability and performance, while the custom-made power transformer, 12,000uF block capacitors, and aluminum-extruded heat sinks ensure efficient power delivery and temperature management.

Pure Direct Mode for Superior Sound Purity

• Activate Pure Direct Mode for an unaltered signal path, resulting in greater sound purity by bypassing non-essential circuits. This mode helps deliver the most authentic sound reproduction, enhancing the overall listening experience.

Advanced Connectivity

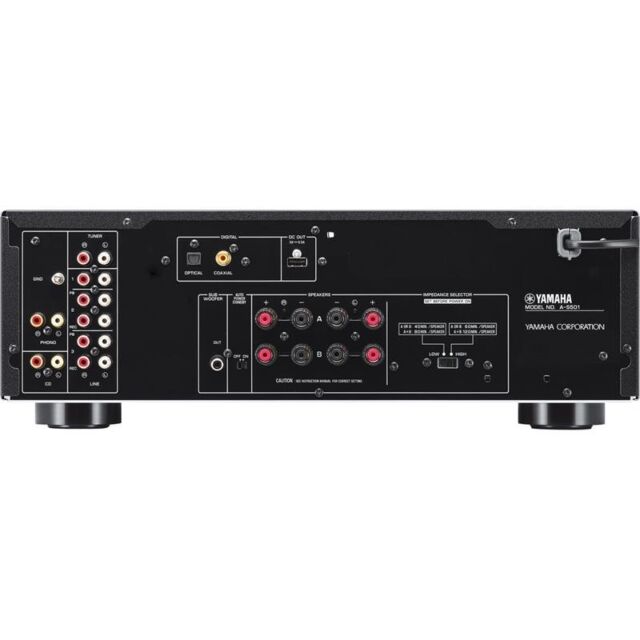

• Enjoy seamless audio connections with gold-plated speaker terminals and RCA terminals (for CD, Phono), along with coaxial and digital audio inputs for TV or Blu-ray players. The amplifier also includes a subwoofer output for deep bass performance.

Continuous Variable Loudness Control

• The loudness control allows you to adjust sound volume for balanced audio even at lower listening levels, ensuring that no detail is lost.

Eco-Friendly Auto Power Standby

• This amplifier features auto power standby, conserving energy when not in use, with a minimal standby power consumption of just 0.5W.

Specifications

• Minimum RMS Output Power (8 ohms, 20 Hz-20 kHz): 85 W + 85 W (0.019% THD)
• Maximum Power (4 ohms, 1kHz, 0.7% THD): 120 W + 120 W
• High Dynamic Power/Channel (8/6/4/2 ohms): 130/150/185/220 W
• Damping Factor: 240
• Frequency Response: 10 Hz - 100 kHz ±1.0 dB
• Total Harmonic Distortion (CD to Sp Out, 20 Hz-20 kHz): 0.019% (50 W/8 ohms)
• Signal-to-Noise Ratio (CD): 99 dB (input shorted, 200 mV)
• Audio In/Out: 8 / 2
• Digital Input: Optical / Coaxial
• Subwoofer Out: Yes
• DC Out: Yes
• Pure Direct: Yes
• ToP-ART Technology: Yes
• Standby Power Consumption: 0.5W
• Power Management (Auto Power Standby): Yes
• Dimensions (W x H x D): 435 x 151 x 387 mm (17-1/8” x 6” x 15-1/4”)
• Weight: 10.3 kg (22.7 lbs)

Why Choose This Amplifier?

The 240W High-Performance Audio Amplifier offers uncompromising sound quality thanks to its ToP-ART technology and high-end components. Its sleek design, advanced connectivity options, and eco-friendly auto power standby make it the perfect addition to any home audio setup. Whether you're enjoying your favorite music or watching movies, this amplifier delivers the clear, dynamic sound you deserve.
