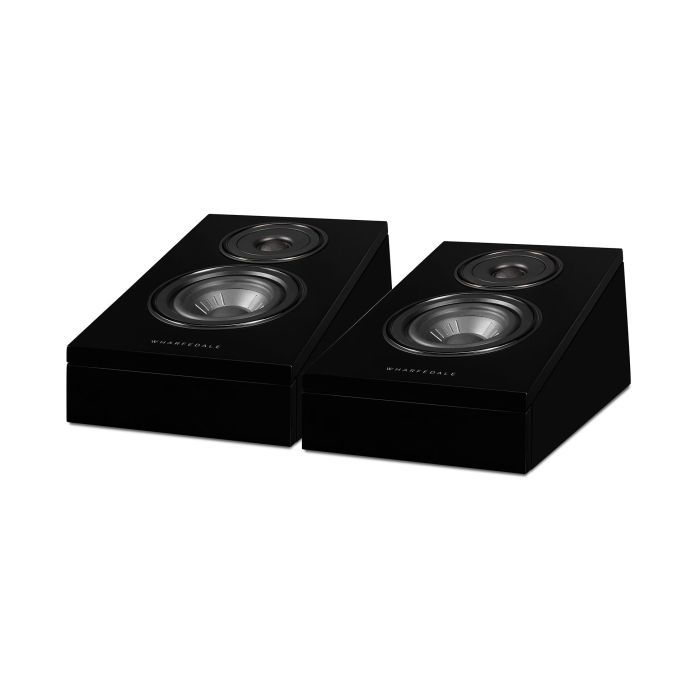

Wharfedale Diamond 12.3D Atmos Speakers - Elevate Your Home Audio with Immersive Surround Sound

Step into a new era of immersive audio with the Wharfedale Diamond 12.3D Atmos Speakers, a pair designed for those who demand excellence in home theater sound. As part of the acclaimed DIAMOND series, these speakers are celebrated for their clarity and detail, offering an exceptional audio experience at an accessible price. Perfect for creating a 3D audio environment, the DIAMOND 12.3D delivers a cinematic sound experience that makes every scene and song come alive.

Immerse in Clarity with Klarity™ Technology

Equipped with Klarity™ polypropylene cones, crafted from a proprietary blend of mica and polypropylene, the Wharfedale 12.3D Atmos Speakers deliver clear and accurate sound. These low-distortion cones ensure fast response and excellent rigidity, allowing each note and detail to be delivered with precision and natural tonality.

Precision-Engineered Magnet System

The advanced magnet system, featuring an aluminum compensation ring, enables clean, distortion-free sound by stabilizing inductance fluctuations as the voice coil moves. This system contributes to the seamless clarity and immersion of the listening experience, delivering rich audio that fills the room without unwanted noise or interference.

High-Fidelity Voice Coil for Enhanced Power

Built with a high-power epoxy/glass fiber bobbin, the voice coil of the DIAMOND 12.3D provides remarkable power handling and strength, ensuring you can enjoy high-output sound without sacrificing clarity or quality. The result is a balanced, controlled audio experience with warmth and depth, even at high volumes.

Crisp Highs and Wide Dispersion

The 25mm woven polyester dome tweeter delivers extended, open high frequencies that reach every corner of your space. Designed for wide dispersion, the tweeter ensures clear, uncompressed sound, bringing every whisper and note into sharp focus.

Resonance Reduction with Intelligent Spot Bracing

To eliminate unwanted resonance, the cabinet is designed with Intelligent Spot Bracing, which reduces vibration transfer between walls. This meticulous design provides clean, undistorted sound, ensuring a smooth and immersive experience for music and movies alike.

Key Specifications

• Type: 2-way vertical channel speaker, closed-box system
• Bass Driver: 4" (100mm) advanced PP cone
• Treble Driver: 1" (25mm) textile dome
• Sensitivity: 85dB (2.83V @ 1m)
• Recommended Amplifier Power: 20-100W
• Peak SPL: 95dB
• Nominal Impedance: 8Ω compatible
• Frequency Response: 110Hz - 20kHz (+/-3dB)
• Dimensions: Height 145mm, Width 180mm, Depth 310mm (with terminals)
• Finish: Available in Black Oak, Walnut Pearl, and Light Oak Vinyl

Enhanced Home Theater Experience

Bring the ultimate audio experience to your home with the Wharfedale Diamond 12.3D Atmos Speakers. Designed to make every scene impactful and every song vibrant, these speakers are ideal for those who value clarity, depth, and immersive surround sound. Embrace the future of high-fidelity home audio with Wharfedale's latest innovation.
