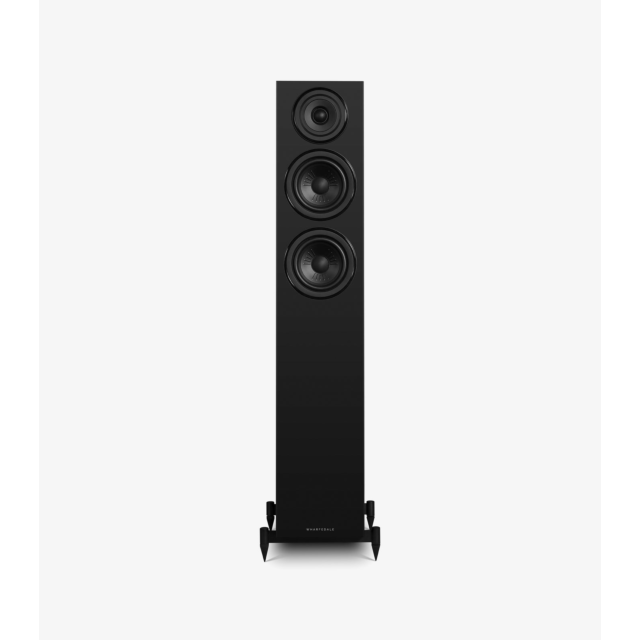

Wharfedale DIAMOND12.3I 2.5 way Floorstanding speaker Pair Black

Wharfedale Diamond 12.3i – Refined Performance, Modern Craftsmanship

The Wharfedale Diamond series has long been celebrated for delivering class-leading performance at an attainable price, and the Diamond 12.3i continues this legacy with a thoughtful, understated evolution. Building on the success of the Diamond 12 range, the new 12i Series introduces improved finishes and carefully engineered acoustic enhancements—without increasing the cost. In today’s market, that alone sets it apart.

Since its debut in 2020, the Diamond 12 Series has become a benchmark in affordable hi-fi loudspeakers, earning awards and industry recognition. The new 12i generation refines the formula with updated aesthetics and targeted internal upgrades that elevate both listening experience and visual appeal.

A Refreshed Design With Purpose

The Diamond 12.3i benefits from new premium finishes that enhance its clean, contemporary aesthetic. Beyond cosmetic enhancement, Wharfedale’s engineering team revisited airflow, port tuning, and cabinet damping to deliver audible improvements. Subtle modifications to the port structure and internal bracing yield tighter bass, superior control, and smoother low-frequency behaviour within everyday listening spaces.

These improvements follow an intensive research programme involving advanced measurement tools, including laser interferometry, extensive anechoic and in-room testing, and computational fluid dynamics (CFD) analysis. Hundreds of hours of listening evaluation guided the final refinements—ensuring the Diamond 12.3i delivers increased coherence and definition while retaining the signature neutrality of the original series.

Key Specifications – Wharfedale Diamond 12.3i

• General Description: 2.5-way floorstanding speaker

• Enclosure Type: Bass reflex

• Bass Driver: 5" (130mm) advanced polypropylene/mica Klarity™ cone

• Midrange Driver: 5" (130mm) advanced polypropylene/mica Klarity™ cone

• Tweeter: 1" (25mm) textile dome

• Sensitivity: 89dB (2.83V @ 1m)

• Recommended Amplifier Power: 30–150W

• Nominal Impedance: 8Ω compatible (minimum 5.0Ω)

• Frequency Response (+/-3dB): 45Hz – 20kHz

• Bass Extension (-6dB): 40Hz

• Crossover Frequency: 2.2kHz

• Cabinet Volume: 26.6L

• Dimensions (H × W × D): (925+50) × 180 × (320+28)mm

• Net Weight: 19.5kg each

Engineering Highlights

Klarity™ Cone Technology

Each mid/bass driver features Wharfedale’s proprietary Klarity™ cone material—a blend of polypropylene and mica engineered for rigidity, low coloration, and fast transient response. With a low-damping surround and rib-profile shaping, the drivers achieve a smooth, accurate frequency response with minimal distortion.

Advanced Magnet Design

A precision-machined magnet system incorporating an aluminium compensation ring helps reduce inductance variation, lowering distortion and improving clarity. The voice coil is wound on a high-strength epoxy/glass fibre bobbin for superior power handling and thermal stability.

25mm Textile Dome Tweeter

The tweeter uses a woven polyester dome with a damping coating for clean, extended treble. Designed with minimal waveguide influence, it ensures wide dispersion and consistent performance across a broad listening area.

Premium Crossover Components

A carefully optimised Linkwitz-Riley crossover design with high-quality air-core inductors delivers seamless driver integration and maintains phase accuracy. Additional refinements in the motor design ensure the crossover operates without compromising bass precision.

Low-Resonance Cabinet Structure

The cabinet uses a multi-layered sandwich construction tested for optimal damping properties. Internal spot bracing, modelled via advanced simulation, reduces panel resonance without transferring vibration. The result is a solid, composed acoustic foundation with strong imaging and controlled bass.

A Worthy Evolution of a Modern Classic

The Wharfedale Diamond 12.3i takes everything that made the original Diamond 12.3 a standout performer and subtly elevates it. With improved finishes, refined low-frequency performance, and enhanced internal architecture, it delivers a more engaging and articulate sound while preserving the balance and neutrality that define the series.

It feels new. It performs with renewed confidence. Yet, at its core, it remains unmistakably Diamond.
