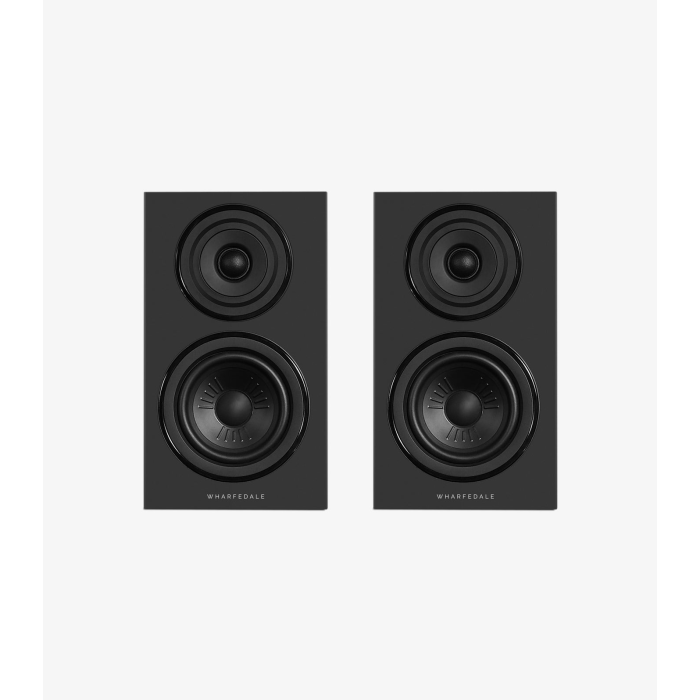

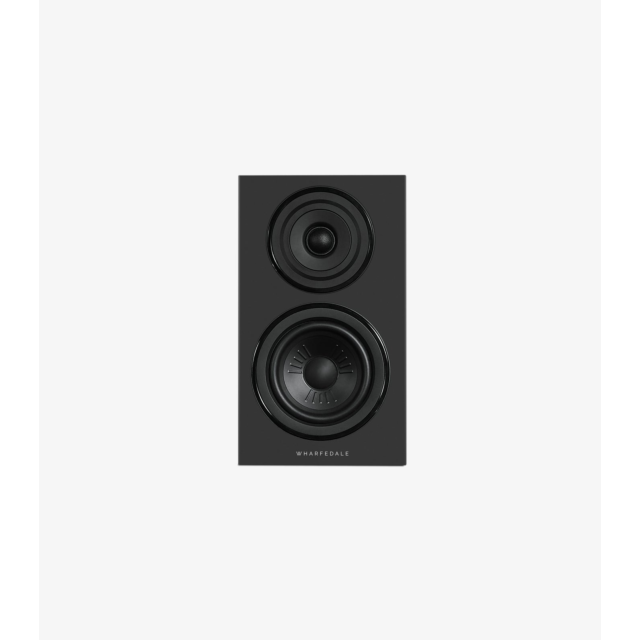

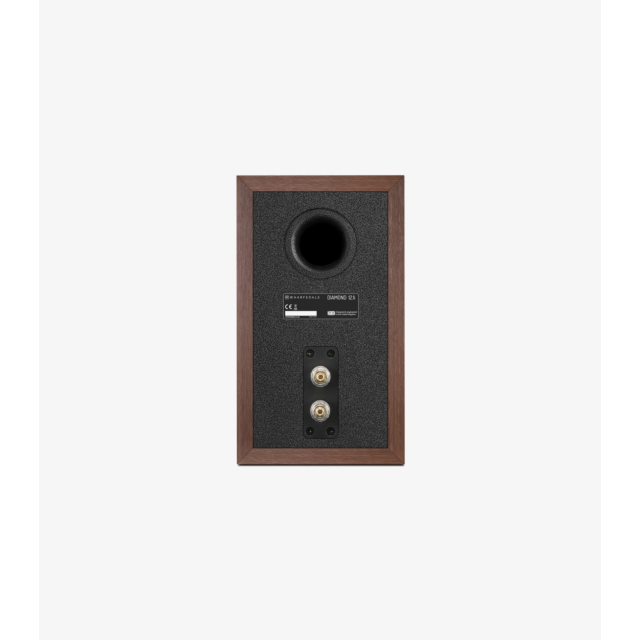

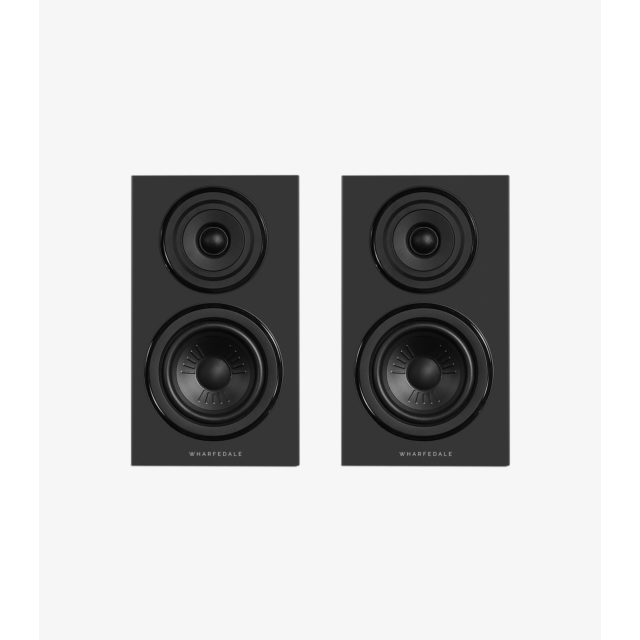

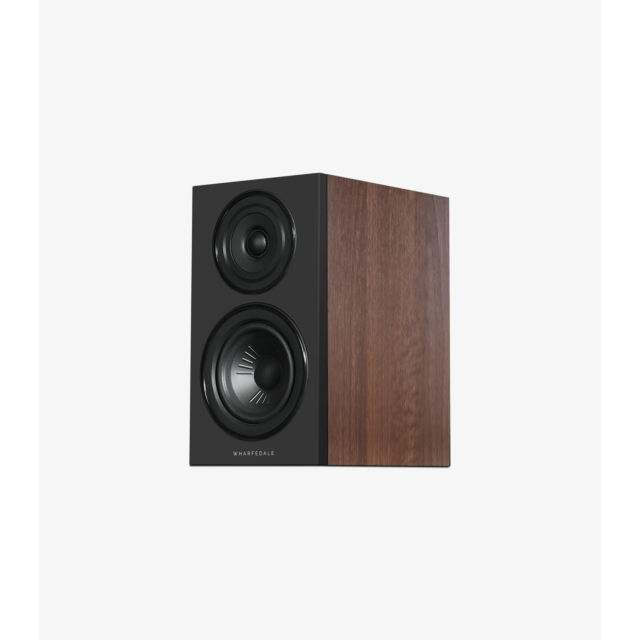

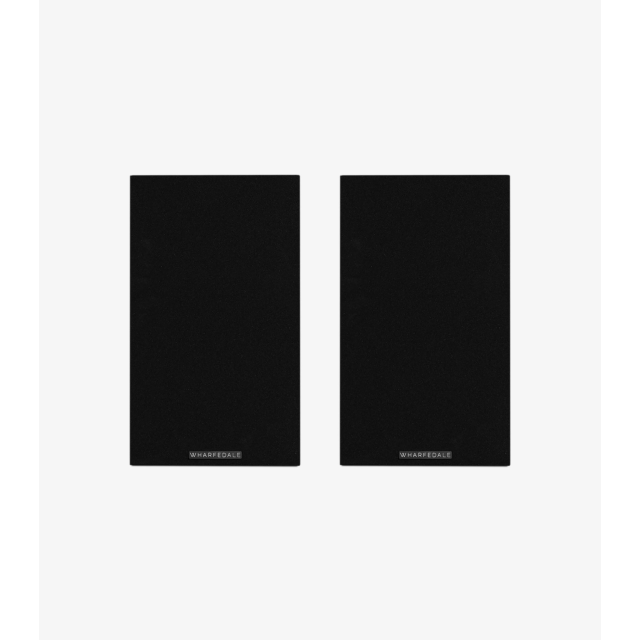

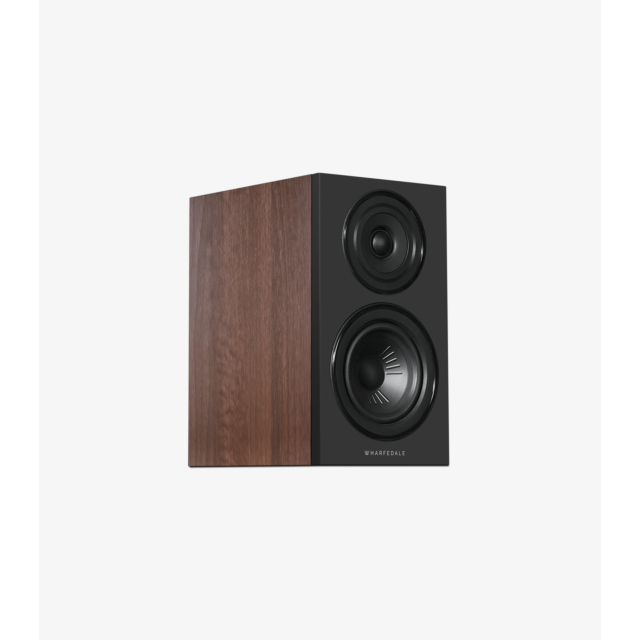

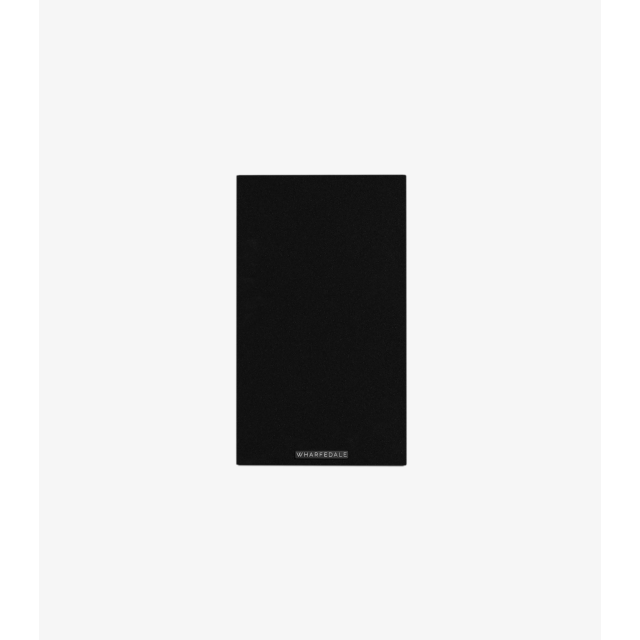

Wharfedale DIAMOND12.1I 2 way Standmount speaker Pair Walnut

Wharfedale Diamond 12.1i – Compact Precision, Refined Performance

The Wharfedale Diamond 12 Series has long set the standard for high-value hi-fi loudspeakers, winning consistent acclaim since its launch in 2020. With the introduction of the Diamond 12i Series, Wharfedale enhances this already-celebrated range with upgraded finishes and subtle acoustic improvements—delivered at no additional cost. In a market where prices continually rise, such an enhancement without a higher price tag is a rare achievement.

The Diamond 12.1i represents the evolution of Wharfedale’s most popular bookshelf model. Now finished in richer, more contemporary colour options and supported by engineering refinements, the 12.1i offers an elevated listening experience while preserving the musical neutrality that made its predecessor a bestseller.

Compact Speaker, Considerably Upgraded

While the size remains ideal for bookshelves and smaller rooms, the internal improvements are anything but small. Wharfedale’s engineering team examined bass port optimisation, airflow management, and cabinet damping, resulting in noticeably clearer bass, increased low-frequency control, and greater consistency across varying room placements.

These refinements come from months of evaluation using advanced tools such as laser interferometry, anechoic measurements, in-room testing, and CFD modelling. Hundreds of hours of controlled listening confirmed the improvements. The Diamond 12.1i now delivers more articulate bass and improved coherence between low and high frequencies—offering a tighter, more engaging soundstage.

Key Specifications – Wharfedale Diamond 12.1i

• General Description: 2-way bookshelf speaker

• Enclosure Type: Bass reflex

• Bass Driver: 5" (130mm) Klarity™ polypropylene/mica cone

• Tweeter: 1" (25mm) textile dome

• Sensitivity: 88dB (2.83V @ 1m)

• Recommended Amplifier Power: 20–100W

• Nominal Impedance: 8Ω compatible (minimum 4.0Ω)

• Frequency Response (+/-3dB): 65Hz – 20kHz

• Bass Extension (-6dB): 60Hz

• Crossover Frequency: 2.6kHz

• Cabinet Volume: 8.2L

• Dimensions (H × W × D): 312 × 180 × (250+28)mm

• Net Weight: 6.8kg each

Engineering Highlights

Klarity™ Cone Technology

The mid/bass driver uses Wharfedale’s Klarity™ cone material—a lightweight but rigid polypropylene/mica blend. This combination keeps distortion low, controls resonance, and delivers fast, clean transient behaviour. Its low-damping surround and rib-reinforced profile ensure a smooth response across the entire midrange and bass spectrum.

Optimised Magnet Assembly

A precision-engineered magnet system incorporating an aluminium compensation ring reduces inductance variation and distortion. The result is improved clarity and less intermodulation interference. The voice coil is wound on an epoxy/glass fibre bobbin, chosen for strength, thermal resilience, and cleaner dynamic performance.

25mm Textile Dome Tweeter

High frequencies are handled by a refined woven polyester dome with a damping treatment that extends treble smoothly and naturally. Designed with minimal waveguide shaping, it offers wide dispersion and excellent consistency across listening positions.

High-Grade Crossover Network

Wharfedale uses a finely tuned Linkwitz-Riley crossover topology, employing air-core inductors typically found in higher-priced speakers. The crossover is engineered to deliver seamless integration between the drivers with minimal phase shift and improved transparency.

Low-Resonance Cabinet Construction

Built using a multi-layered sandwich structure, the cabinet suppresses unwanted vibration and panel resonance. Computer-modelled internal bracing reinforces structural rigidity without transferring cabinet energy. This approach enhances imaging precision and contributes to the confident, controlled sound of the 12i series.

A Small Loudspeaker With Big Loudspeaker Ambition

The Wharfedale Diamond 12.1i maintains the approachable size and affordability of the original 12.1 while delivering improved bass articulation, wider dispersion, and more refined overall presentation. It looks more premium, feels more robust, and performs with newfound authority—yet it remains true to the Diamond philosophy.

A thoughtfully upgraded classic, ready for modern listeners.
