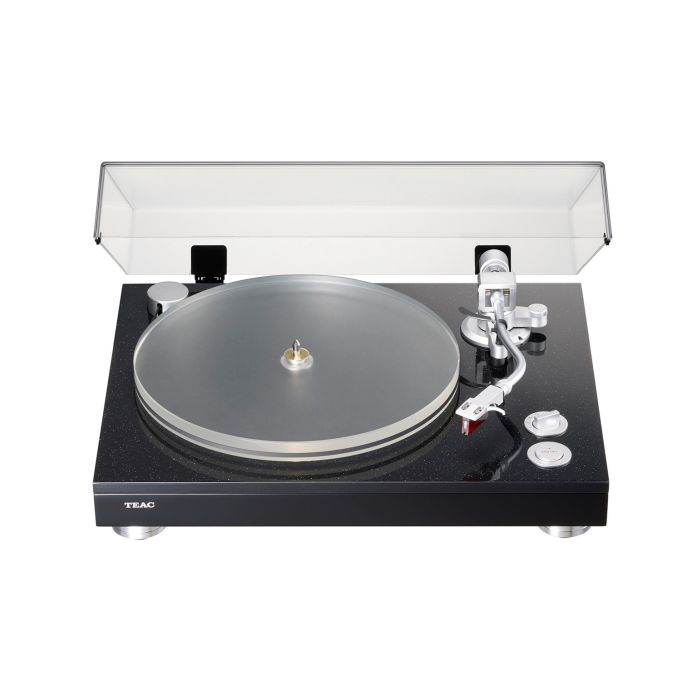

Teac TN-5BB Belt Drive Turntable with XLR Outputs in Black

Teac TN-5BB Belt Drive Turntable with XLR Outputs

Where Precision Meets Elegance in Vinyl Playback

Step into the pinnacle of audiophile craftsmanship with the Teac TN-5BB Belt Drive Turntable, an innovation designed to deliver exceptional sound quality and elegant aesthetics. Equipped with advanced features such as a hybrid vibration-suppressing chassis, XLR balanced outputs, and the renowned Ortofon 2M RED MM cartridge, the TN-5BB is the ultimate choice for vinyl enthusiasts seeking the finest playback experience.

Key Features

1. Hybrid Chassis for Superior Vibration Suppression

• Constructed with a 36mm MDF baseplate and a 12mm synthetic marble top plate, the hybrid chassis minimizes unwanted vibrations for stable and accurate sound reproduction.
• Japanese washi paper layers enhance sound balance, preserving the natural character of your records without the dampening effects of traditional materials.

2. PRS3 Belt Drive for Unmatched Stability

• The Platter Rotation Sensing Servo System (PRS3) employs an optical sensor to monitor and adjust platter speed with precision.
• Supports 33 1/3, 45, and 78 RPM for playback of modern and vintage records alike.

3. Precision Knife-Edge Tone Arm

• Developed in collaboration with SAEC, the static-balanced S-shaped tonearm features a stainless-steel knife-edge bearing for vertical movement and high-precision ball bearings for lateral support.
• Adjustable Vertical Tracking Angle (VTA) ensures compatibility with various cartridges.

4. High-Quality Acrylic Platter

• The 20mm-thick acrylic platter provides high inertial momentum, reducing vibrations and maintaining precise speed.
• No turntable sheet is required—vinyl records can be played directly for a clear and dynamic sound.

5. XLR Balanced and RCA Outputs

• Features XLR balanced outputs for superior signal transmission, perfect for connecting to external phono stages with balanced inputs.
• Standard RCA outputs and a GND connector are also included for versatile connectivity.

6. Ortofon 2M RED MM Cartridge Included

• Pre-installed and aligned on the cast aluminum headshell, the Ortofon 2M RED cartridge offers vibrant, detailed playback right out of the box.

7. Aesthetic and Functional Design

• A striking combination of pearl black and piano black finishes with extruded aluminum accents creates a luxurious and modern appearance.
• Height-adjustable aluminum feet ensure perfect leveling and isolation, while a powered arm lifter provides smooth operation.

What’s in the Box?

• 45RPM Adapter x1
• Counterweight x1
• Headshell (Ortofon 2M RED installed) x1
• Acrylic Platter x1
• Flat Belt x1
• Pulley Cover x1
• Dust Cover x1
• Hinges x2
• Foot Height Adjustment Washers x4
• Arm Height Adjustment Hex Wrench x1
• RCA Audio Cable x1
• Ground Wire x1
• AC Adapter x1
• Cartridge Alignment Gauge x1
• User Manual x1

Technical Specifications

Turntable

• Drive System: PRS3 belt drive with optical speed control
• Rotation Speeds: 33 1/3, 45, and 78 RPM
• Platter: 30cm diameter, 20mm-thick acrylic (1.7kg)
• Wow and Flutter: ≤0.1%

Tone Arm

• Type: Static-balanced S-shaped tone arm
• Effective Arm Length: 223mm
• Cartridge Compatibility: 14–23g (including headshell)

Cartridge

• Type: MM (Ortofon 2M RED pre-installed)
• Output Voltage: 5.5mV (1kHz, 5cm/s)
• Tracking Force: 1.8g

General

• Outputs: XLR balanced, RCA unbalanced
• Power: AC Adapter (Input: 100–240V, Output: DC 12V)
• Weight: Approx. 10.5kg
• Dimensions (W x H x D):
  • With dust cover closed: 450 × 148 × 351mm
  • With dust cover removed: 450 × 135 × 351mm

Why Choose the Teac TN-5BB?

• Uncompromising Sound Quality: Hybrid chassis, acrylic platter, and PRS3 belt drive ensure exceptional audio fidelity.
• Versatile Outputs: XLR balanced and RCA connections for optimal compatibility with your audio setup.
• Elegant Design: A blend of luxurious finishes and premium materials makes it a statement piece.
• Ready to Play: Includes a pre-installed Ortofon 2M RED cartridge for instant setup.

Elevate your vinyl experience with the Teac TN-5BB Belt Drive Turntable—a harmonious blend of precision, innovation, and timeless design. Rediscover the magic of vinyl today.
