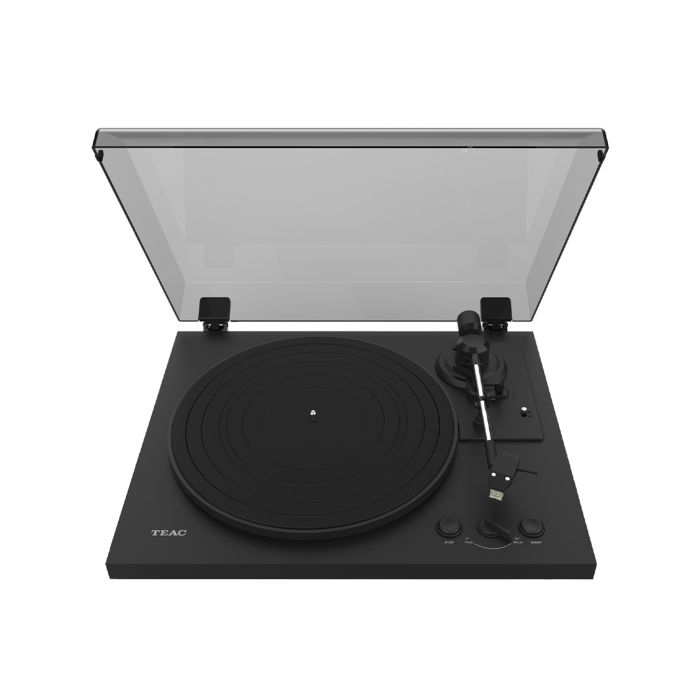

TEAC TN-175 Full Automatic Turntable in Black

TEAC TN-175 Full Automatic Turntable – Black

Effortless Vinyl Playback with Precision and Style

The TEAC TN-175 Full Automatic Turntable is the perfect blend of simplicity and performance, offering a fully automatic design that caters to vinyl enthusiasts and beginners alike. With its built-in phono preamp, factory-installed cartridge, and premium MDF chassis, this turntable delivers remarkable sound quality straight out of the box.

Key Features

1. Full Automatic Operation

• Effortless Use: Fully automatic functionality lets you start and stop playback with the push of a button. The tonearm automatically lifts, moves to the record, and returns when playback ends.
• Two-Speed Playback: Supports 33 1/3 RPM and 45 RPM, making it compatible with a wide range of vinyl records.

2. Built-In Phono Preamp

• Equipped with a switchable phono preamp, allowing you to connect the TN-175 to any AUX or phono input.
• Perfect for connecting to traditional hi-fi systems or modern smart speakers via RCA outputs.

3. Premium MDF Chassis for Vibration Damping

• The high-density wooden MDF chassis reduces unwanted vibrations, ensuring clear and detailed sound.
• Isolation feet provide additional damping, minimizing interference for a pure listening experience.

4. Precision Tonearm and Cartridge

• The static-balanced straight tonearm ensures accurate tracking, while the pre-installed Audio-Technica AT3600L cartridge offers reliable and detailed playback.
• Factory alignment eliminates the need for setup adjustments, reducing the risk of damage to your records.

5. Compact and Elegant Design

• A sleek black finish and minimalist design make the TN-175 a stylish addition to any audio setup.
• The dust cover protects the turntable and records while in use or storage.

What’s in the Box?

• Rubber Mat
• EP Adapter
• VM-Type Cartridge (Audio-Technica AT3600L, Pre-installed)
• Platter
• Dust Cover
• Hinges x2
• RCA Audio Cable
• AC Adapter
• Owner’s Manual

Technical Specifications

Turntable Section

• Drive System: Belt Drive
• Motor: DC Motor
• Speeds: 33 1/3 RPM, 45 RPM
• Wow and Flutter: ≤0.2%
• Signal-to-Noise Ratio: ≥67dB (A-weighted)
• Platter: Molded Resin (290mm diameter)

Tonearm Section

• Type: Static Balance, Straight
• Effective Arm Length: 207.9mm
• Tracking Force: 3.5g

Cartridge Section

• Type: VM (MM Equivalent)
• Output Voltage: 3.5mV (1kHz, 5cm/s)
• Tracking Force: 3.5g ±0.5g

Phono Equalizer Amplifier

• Type: MM (On/Thru Switchable)
• Outputs:
  • Phono Output: 2.5mV
  • Line Output: 150mV

General

• Power Supply: AC 100-240V, 50/60Hz
• Power Consumption: 6.0W (Standby: <0.2W)
• Dimensions:
  • With Dust Cover: 420 × 105 × 355 mm (16.5" × 4.1" × 14.0")
• Weight: Approx. 3.5kg (7-¾ lbs.)

Why Choose the TEAC TN-175?

• Beginner-Friendly: Fully automatic operation makes it ideal for newcomers to vinyl.
• Great Value: High-quality features and components at an affordable price point.
• Universal Connectivity: Switchable phono preamp for compatibility with various audio systems.

Experience the joy of vinyl with the TEAC TN-175 Full Automatic Turntable—a perfect combination of convenience, style, and sound quality.
