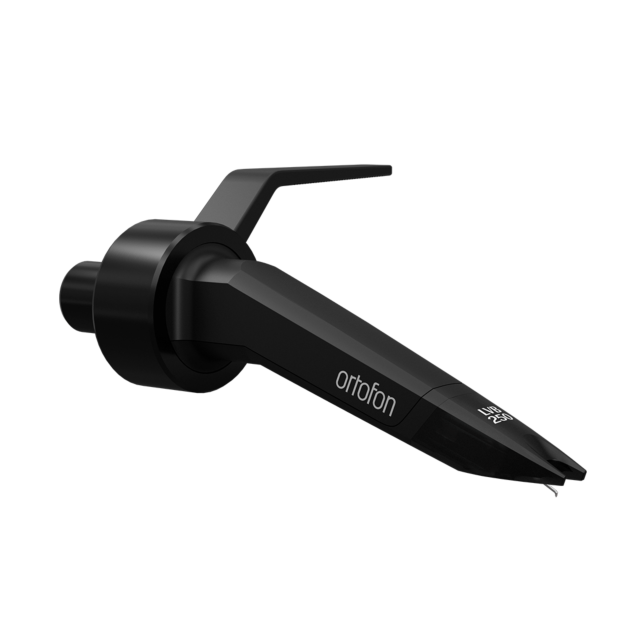

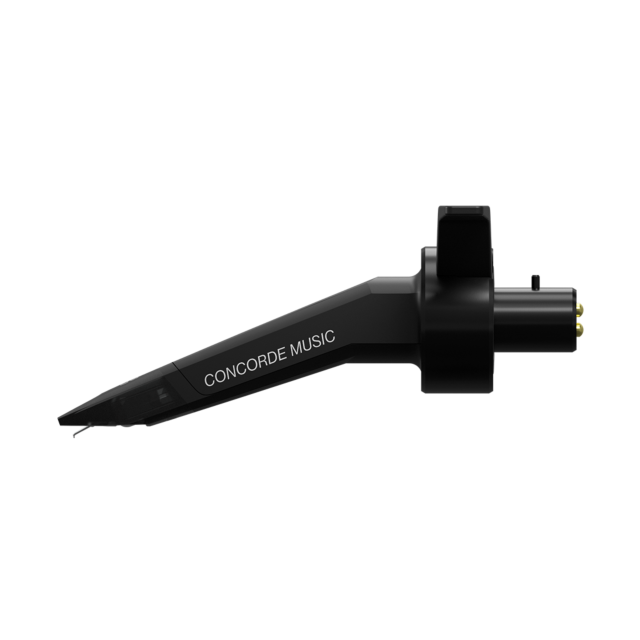

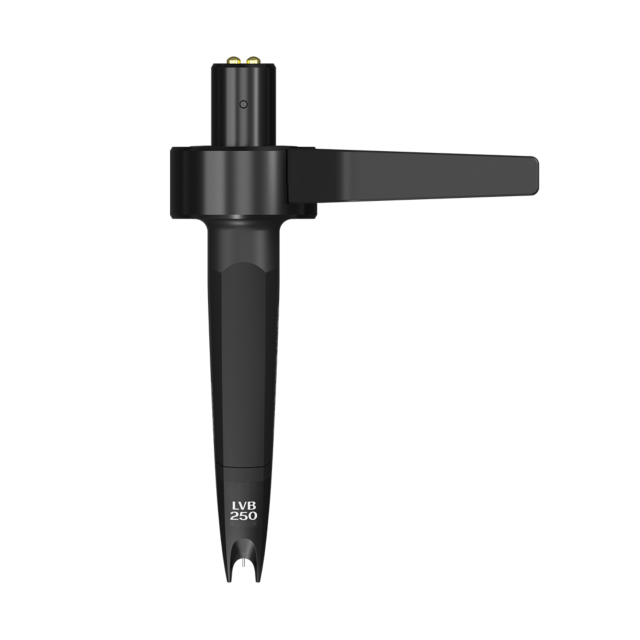

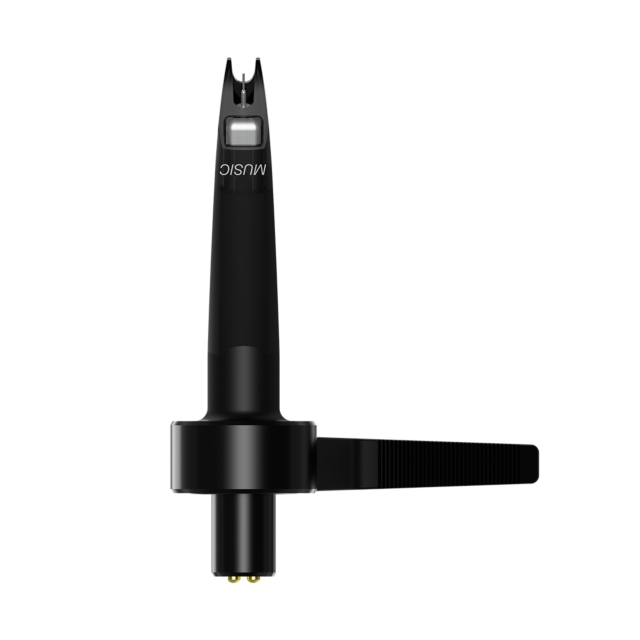

Ortofon Concorde Music Black LVB 250 MM Cartridge

Ortofon Concorde Music Black LVB MM Phono Cartridge

The Ortofon Concorde Music Black LVB MM Phono Cartridge is the flagship model in the Concorde Music range, engineered for listeners who want highly detailed and precise vinyl reproduction. It combines a Shibata diamond stylus with a lightweight boron cantilever and Ortofon’s Nano Tube suspension system to deliver accurate groove tracking and excellent high-frequency detail.

The LVB name refers to Ludwig van Beethoven, with this special-edition cartridge introduced to commemorate the 250th anniversary of his birth. Its advanced construction is designed to extract a high level of musical information from your records while maintaining controlled and accurate tracking.

Shibata Diamond Stylus

The Shibata stylus features an extended contact area with the record groove, allowing it to retrieve more of the information contained within the vinyl. Its advanced profile is particularly effective at reproducing high frequencies while maintaining excellent tracking performance.

The stylus is mounted to a boron cantilever, which offers very low moving mass and helps the cartridge respond quickly to changes in the groove. The larger groove contact area can also help distribute tracking pressure more effectively, reducing record and stylus wear. The Shibata stylus has an approximate lifespan of 400 hours and can be replaced when required.

Advanced Nano Tube Suspension

One of the key upgrades of the Black LVB is Ortofon’s Nano Tube suspension system. Designed to provide very low resistance to groove information, it allows the stylus to follow the record groove with a high level of accuracy.

The cartridge body also uses a rigid Noryl plastic and glass construction, helping to control unwanted resonance. Silver-coated internal wires and split pole pins further enhance the cartridge design. The split pole construction helps reduce eddy currents, supporting cleaner high-frequency reproduction.

Easy SME Mounting

Like other Ortofon Concorde cartridges, the Music Black LVB uses a standard SME-style connector. This provides straightforward compatibility with a wide range of suitable turntables and tonearms.

The cartridge is also designed with a practical weight for use with many modern turntables. Its plug-and-play design makes installation simple, allowing you to quickly fit the cartridge and begin listening without complicated alignment procedures.

Concorde Music Stylus Options

The Black LVB sits at the top of the Concorde Music range and uses the advanced Shibata stylus profile. Other models in the range feature different stylus designs, allowing listeners to select a cartridge according to their system, budget and listening preferences.

The Red model uses a bonded elliptical stylus, while the Blue features a nude elliptical stylus. The Bronze model incorporates an upgraded pickup assembly, while the Black LVB adds the Shibata stylus, boron cantilever and Nano Tube suspension technology.

Moving Magnet Cartridge Technology

The Ortofon Concorde Music Black LVB is a Moving Magnet (MM) cartridge. In an MM design, a small magnet is attached to the cantilever and moves in relation to fixed coils as the stylus follows the record groove.

Moving Coil (MC) cartridges use a different arrangement, with the coils attached to the cantilever. MC designs can offer low moving mass but generally produce a lower output, meaning they may require a compatible phono stage or additional gain.

The Black LVB combines MM cartridge technology with a lightweight boron cantilever and advanced suspension, helping it achieve highly detailed and responsive vinyl playback.

Phono Preamp Compatibility

With an output of approximately 6 mV, the Ortofon Concorde Music Black LVB is designed to work with a wide range of MM-compatible phono preamps. While it can be used with many standard phono stages, pairing this flagship cartridge with a high-quality phono preamp can help your turntable system make the most of its detailed and precise performance.
