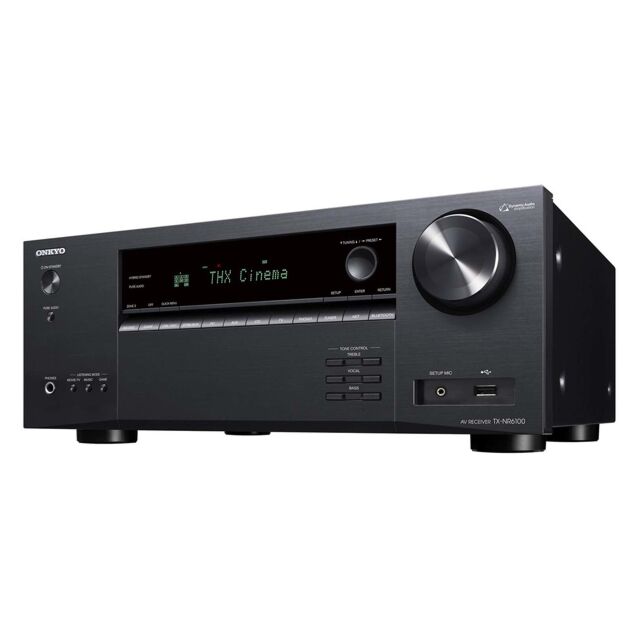

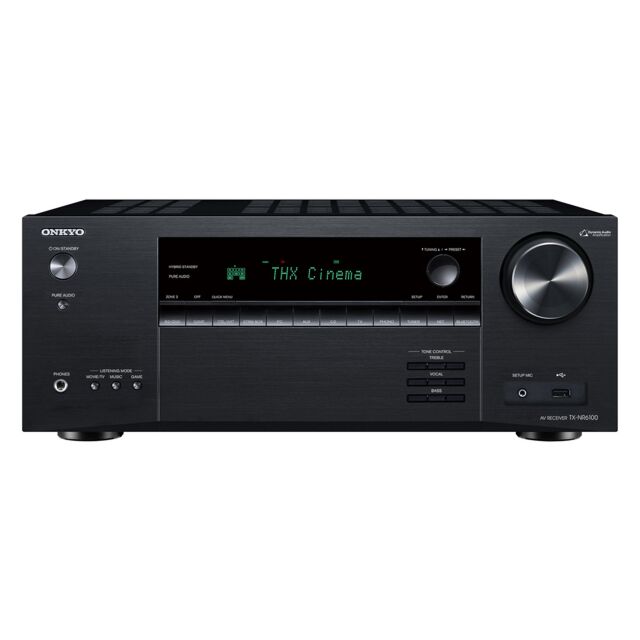

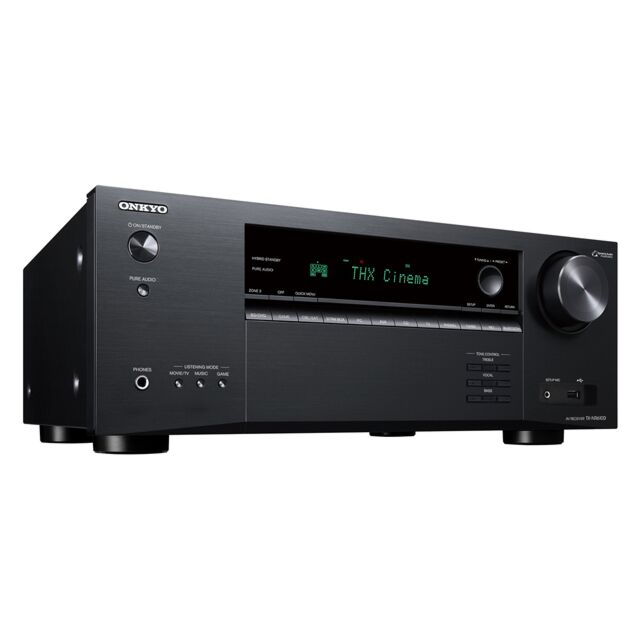

Onkyo TX-NR6100 7.2 Channel Av Receiver - Black

ONKYO TX-NR6100 AV Receiver 7.2ch – Black

Cinematic Audio Performance with THX® Certification

The ONKYO TX-NR6100 delivers THX® Certified Select sound, ensuring the same reference-quality audio you’d experience in a commercial theater. To achieve this certification, the receiver undergoes 2,000 rigorous tests across 75 categories, guaranteeing precise, high-fidelity performance in rooms where the screen-to-seat distance is approximately 3.5 meters.

8K Ultra HD Video & HDMI 2.1 Support

Designed for the future of home entertainment, this receiver supports 8K/60p video passthrough via HDMI 2.1, ensuring a stunningly sharp picture on compatible displays. It enhances brightness, contrast, and color with HDR10, HDR10+, Dolby Vision™, and HLG. The HDCP 2.3 compliance ensures seamless compatibility with Ultra HD sources. Thanks to eARC (Enhanced Audio Return Channel), you can transmit high-quality Dolby Atmos® and DTS:X® audio directly from your TV’s built-in apps to the receiver. Additionally, QMS (Quick Media Switching) eliminates screen blackouts between content changes.

Gaming-Optimized Performance

Gamers will appreciate low-latency and ultra-smooth gameplay, thanks to Variable Refresh Rate (VRR), Auto Low Latency Mode (ALLM), and Quick Frame Transport (QFT). These features minimize lag, eliminate stuttering, and reduce frame tearing, giving you the edge in fast-paced gaming environments.

Seamless Multi-Room Audio & Smart Integration

The SMART AV Receiver™ feature lets you stream audio across multiple rooms with support for Amazon Music HD, Spotify®, TIDAL, Deezer, and TuneIn. It integrates seamlessly with Ok Google and Alexa, allowing voice control for hands-free convenience. Additionally, it supports Sonos compatibility, meaning it can integrate into an existing Sonos ecosystem for effortless audio management.

Dolby Atmos & DTS:X – A New Dimension of Sound

Experience true 3D audio with Dolby Atmos and DTS:X, which place sounds above and around you for a fully immersive experience. If you don’t have dedicated height speakers, the Dolby Atmos Height Virtualizer and DTS Virtual:X™ simulate overhead effects using your existing setup.

Advanced Wireless Connectivity & Streaming

With dual-band Wi-Fi (5 GHz/2.4 GHz) and Bluetooth® technology, this receiver enables hassle-free streaming from your devices. The bi-directional Bluetooth feature allows audio transmission to and from Bluetooth headphones, supporting AAC, aptX™, and aptX HD for high-resolution wireless audio. Additionally, Chromecast built-in™ lets you cast music from your phone or laptop, while Apple AirPlay 2 allows seamless streaming from iPhone, iPad, or Mac.

AccuEQ Room Calibration for Optimal Sound

AccuEQ calibration analyzes your speaker setup, detecting size, distance, and crossover frequency to deliver perfectly balanced audio. AccuReflex™ further enhances Dolby Atmos-enabled speakers by correcting phase differences, ensuring a clear and unified soundstage.

Expanded Zone 2 Multi-Room Functionality

The Zone 2 outputs allow for powered multi-room audio, so you can synchronize playback between two rooms or play separate sources simultaneously. The Zone B line-out supports wireless headphone docks, letting you listen to MAIN Zone content through your headphones.

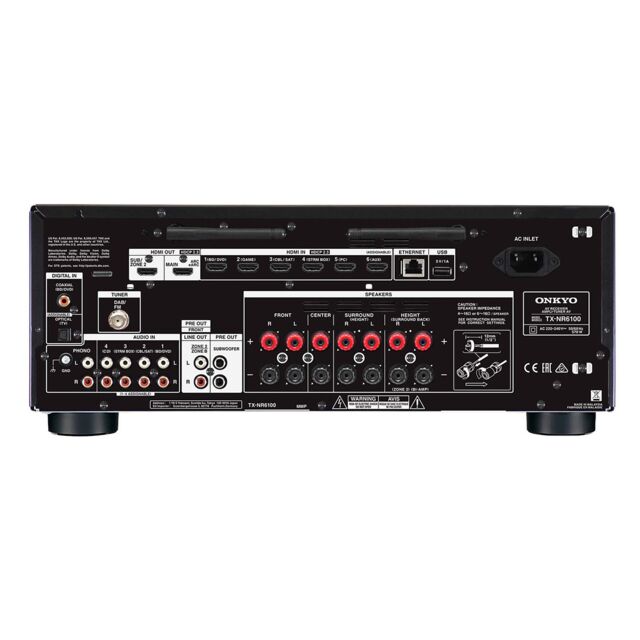

Comprehensive Connectivity Options

• HDMI Inputs: 6 (3 HDMI 2.1, 3 HDMI 2.0)
• HDMI Outputs: 2
• Digital Audio Inputs: 1 Optical, 1 Coaxial
• Analog Audio Inputs: 4 RCA, 1 Phono (MM)
• Subwoofer Pre-Outs: 2
• USB Ports: 2 (for audio playback and firmware updates)
• Ethernet Port: 1 for wired network connection

Specifications & Dimensions

• Max Video Resolution: 8K UHD (with 1080p to 4K upscaling)
• Power Output: 7.2 channels, 5.2.2 Dolby Atmos setup
• Frequency Response: 10Hz – 100kHz
• Weight: 9.8kg
• Dimensions: 43.5cm (W) × 17.4cm (H) × 38cm (D)

Energy & Power Management

• Power Consumption: 1.7W (standby) – 570W (max usage)
• Voice Assistants: Alexa, Google Assistant, Siri
• Control Apps: Roon Ready, Sonos, DTS Play-Fi, Proprietary App

The ONKYO TX-NR6100 is built to deliver cinema-quality sound, cutting-edge video processing, and seamless smart home integration—making it the ultimate choice for audiophiles and home theater enthusiasts.
