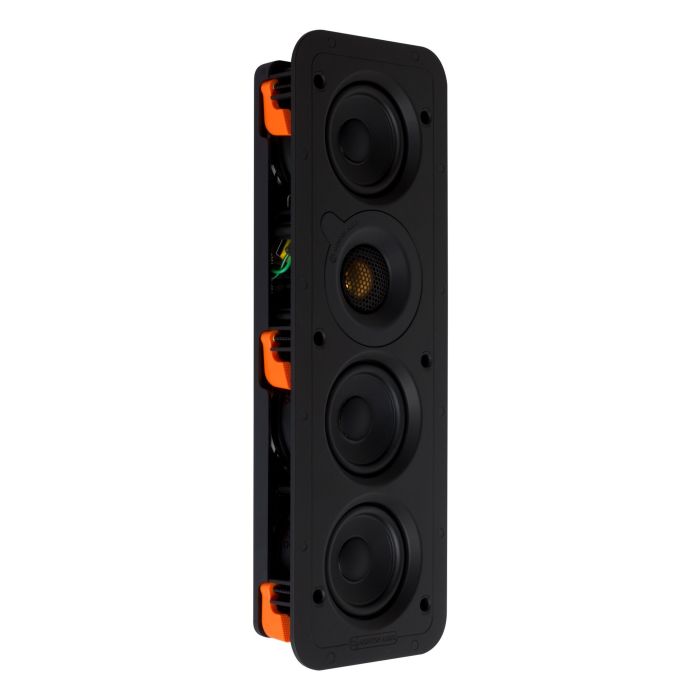

Monitor Audio WSS230 Creator Series In-Wall Slim Speaker Single

£340.00

Please call 01707 802030 for information.

  • Manufacturer Guarantee1 year

Monitor Audio WSS230 Creator Series In-Wall Speaker – Single

Slim Design, Elevated Sound

The Monitor Audio WSS230 in-wall speaker offers an incredible balance of compact design and high-performance audio. A step up from the WSS130, this model is perfect for installations requiring more detailed and dynamic music reproduction. Featuring advanced C-CAM metal cone drivers, the WSS230 brings precision, clarity, and flexibility to any audio setup, whether for music or cinema.


Key Features

  • C-CAM Gold Dome Tweeter: Renowned for its clarity and precision, delivering crisp, detailed highs.
  • Three 3" C-CAM Bass/Midrange Drivers: Provide enhanced sonic accuracy, dynamic midrange, and controlled bass performance.
  • Super-Slim Profile: At just 50 mm (2") depth, it fits into 2" stud walls, making it ideal for space-constrained installations.
  • Flexible Orientation: Designed for portrait or landscape mounting, fitting perfectly between 14" stud bays for L-C-R configurations around screens.
  • Protective Design: A specially designed cover protects drivers and crossovers from building materials during installation.
  • Discreet Aesthetic: Features a trim-less, paintable grille that blends seamlessly with any décor.

Advanced Engineering

  • High-Quality Crossovers: Ensures precise frequency separation for superior sound quality.
  • Tri-Grip Fixings: Robust and reliable, simplifying installation and securing the speaker firmly in place.
  • Magnetic Grille Attachment: Rare earth magnets provide long-lasting security while allowing easy removal for servicing or adjustments.
  • Gold-Plated Terminals: Deliver a reliable connection with minimal signal loss.

Technical Specifications

  • Frequency Response: 75 Hz – 30 kHz
  • Compatible Amplifier Power: 10 – 100 W RMS
  • Nominal Impedance: 8 ohms
  • Sensitivity: 87 dB
  • Maximum SPL: 105.6 dB
  • Drivers:
    • 1 x 25 mm C-CAM Gold Dome tweeter
    • 3 x 76.2 mm C-CAM bass/midrange drivers
  • Dimensions:
    • Cutout Dimensions: 346 x 101 mm
    • Mounting Depth: 50 mm
    • Overall Dimensions: 385 x 140.5 mm
  • Weight: 1.4 kg

Versatile Applications

  • Home Cinema: Ideal for immersive surround sound or L-C-R setups.
  • Stereo Music: Offers a rich, dynamic listening experience.
  • Discreet Installations: Perfect for spaces with mounting constraints, including walls with ducts, cabling, or pipework.

Why Choose the Monitor Audio WSS230?

The WSS230 delivers a remarkable combination of flexibility and performance. Whether integrated into a home theater system or used for music playback, it ensures precise, engaging sound in a slim, space-saving form. With its innovative design and superior build quality, the WSS230 represents Monitor Audio’s commitment to excellence in audio engineering.

Upgrade your sound system with the Monitor Audio WSS230 and enjoy superior performance in any setting.

More Information
Manufacturer Monitor Audio
Model Number WSS230
