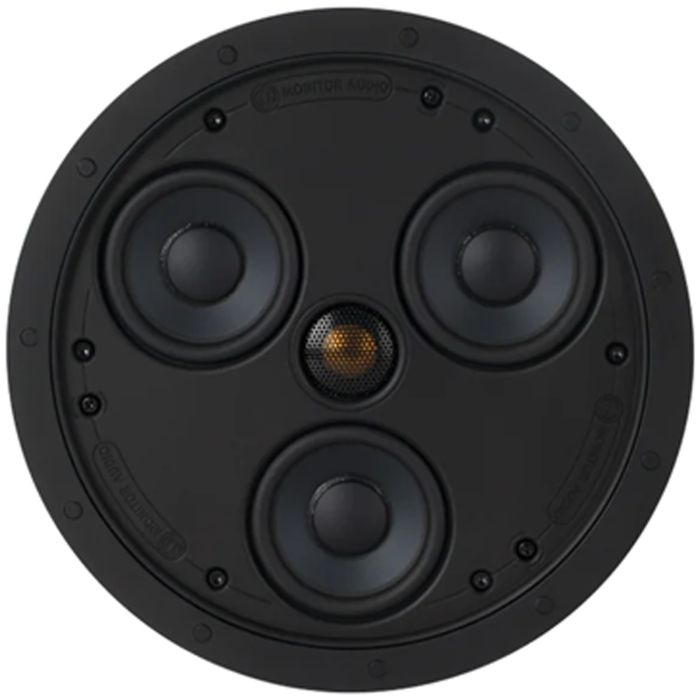

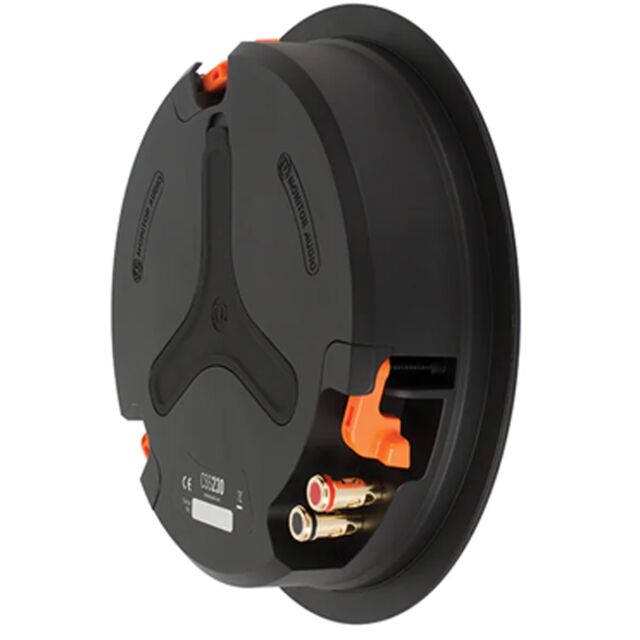

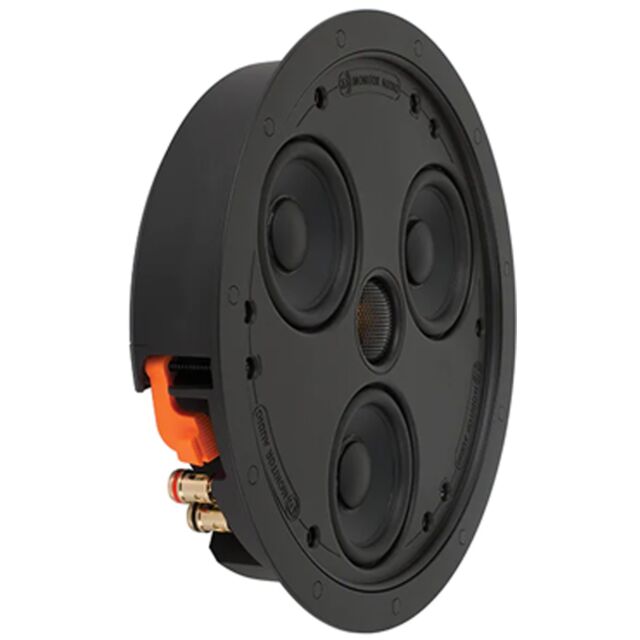

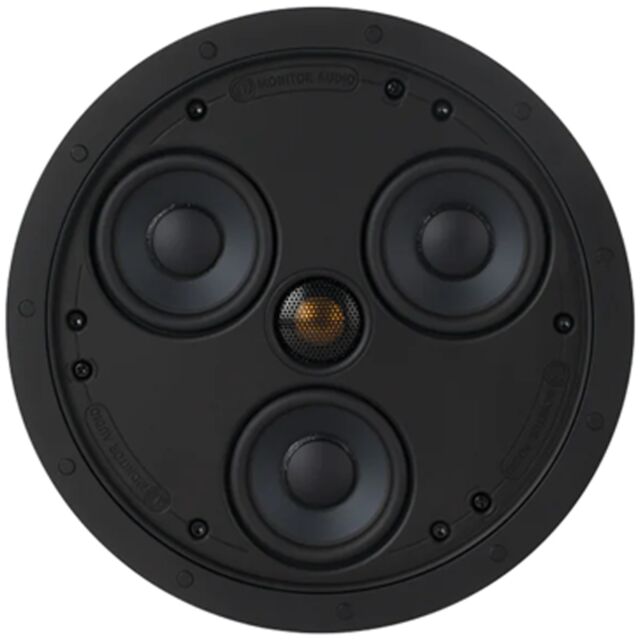

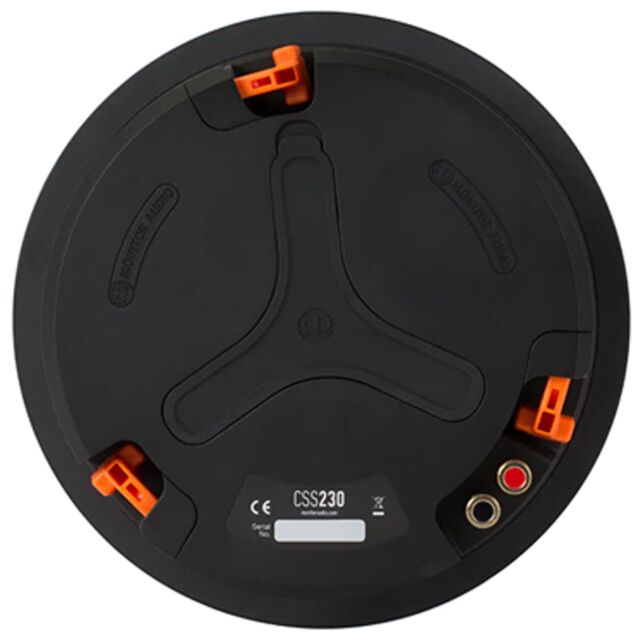

Monitor Audio CSS230 Creator Series In-Ceiling Slim Speaker Single

Monitor Audio CSS230 Creator Series In-Ceiling Speaker – Single

Unmatched Innovation and Performance in Tight Spaces

The Monitor Audio CSS230 is a breakthrough in speaker design, delivering high-fidelity performance from an ultra-slim profile. With a mounting depth of just 50mm (2"), it’s the ideal solution for installations where space is limited, such as between 2" stud frames or in areas with pipework or cabling constraints. Combining advanced materials and design innovation, the CSS230 offers exceptional audio quality in spaces that traditionally couldn’t accommodate high-end speakers.

Key Features

• Super-Slim Profile:

  • At only 50mm in mounting depth, the CSS230 fits into tight spaces, such as 2" stud walls or where space is restricted.

• Hybrid Back-Box Design:

  • Offers both enclosed and open back-box options, providing sound isolation and high-performance audio delivery in one integrated solution.

• Advanced Driver Array:

  • Three proprietary 3” C-CAM bass/mid-range drivers arranged in a radial array, delivering bass output equivalent to a 6 ½” driver, all within a compact form.
  • 19mm C-CAM Gold Dome tweeter ensures detailed high frequencies for an immersive sound experience.

• Superior Crossover Design:

  • Equipped with high-quality film capacitors and low-loss inductors for impeccable signal integrity and audio detail.

• Dust Protection:

  • The 'ported' mode includes a fine gauze to protect the internal acoustic system from dust ingress, enhancing durability and longevity.

• Easy and Flexible Installation:

  • Tri-Grip dog-leg fixings ensure quick, secure, and reliable installation.

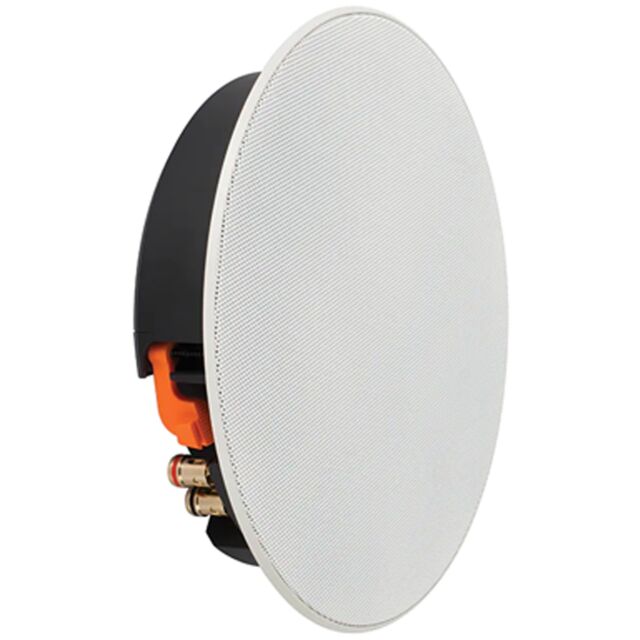

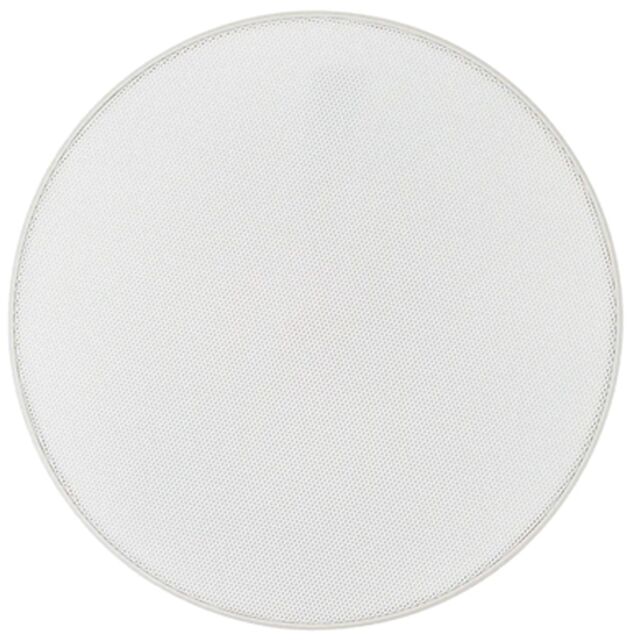

  • Available with magnetically attached ‘Trim-less’ grilles (round or square) that are discreet, paintable, and easy to service.
  • Pre-construction bracket available for streamlined planning and installation.

Technical Specifications

• Frequency Range: 100 Hz – 30 kHz

• Compatible Amplifier Power: 40 – 100 W RMS

• Nominal Impedance: 8 ohms

• Sensitivity: 86 dB

• Maximum SPL: 103.8 dB

• Drivers:

  • 3 x 3” (76 mm) C-CAM bass/mid-range drivers
  • 1 x 19mm C-CAM Gold Dome tweeter

• Enclosure Type: Closed

• Power Type: Passive

• Weight: 1.2 kg

Dimensions

• Cutout Diameter: 211 mm
• Mounting Depth: 50 mm
• Overall Depth: 53 mm
• Overall Diameter: 250 mm

Why Choose the CSS230?

The CSS230 is the ideal solution for delivering high-fidelity sound in challenging installation environments. Its ultra-slim profile allows it to fit where other speakers can’t, while its advanced driver and crossover technology ensure exceptional sound quality. Whether you're installing it in a ceiling or wall, the CSS230 offers both flexibility and performance.

Elevate your audio experience with the Monitor Audio CSS230 – where innovation meets exceptional sound quality in compact spaces.
