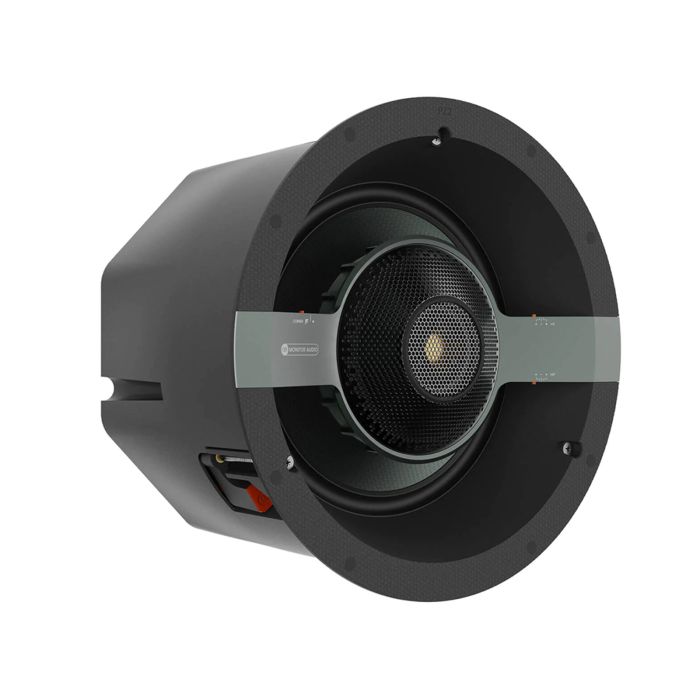

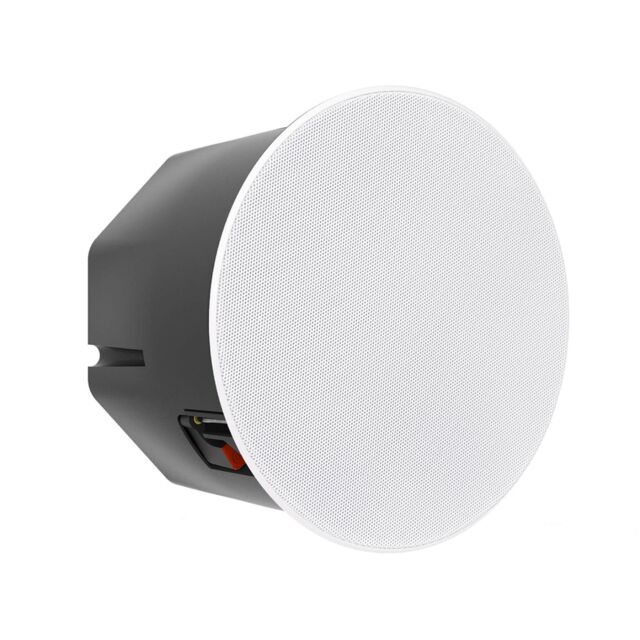

Monitor Audio C3L-CP Creator Series In-Ceiling Slim Speaker Single

Monitor Audio C3L-CP Creator Series In-Ceiling Speaker – Single

Achieve Unmatched Acoustic Excellence

Introducing the Monitor Audio C3L-CP, a Tier 3 in-ceiling loudspeaker that delivers exceptional performance with advanced acoustic technology. This three-way model features top-of-the-line components, including an RDT III bass driver, IDC II midrange driver, and IDC II tweeter with UD Waveguide II, ensuring superior sound quality and clarity. The fully sealed back box provides a controlled air load for the drivers, optimizing midrange and bass performance, while preventing sound leakage, making it ideal for installations that demand both high performance and sound isolation.

With a cut-out diameter of 248 mm, the C3L-CP guarantees quick, easy, and secure installation thanks to the Quik-Link speaker cable connector and the Tri-Grip II system. The fully sealed back box design ensures sonic consistency regardless of the wall construction, enhancing sound isolation between rooms or floors.

Elevate your ceiling audio system with the Monitor Audio C3L-CP, a premium loudspeaker designed for those who demand the highest quality in every installation.

Key Features

• Three-Way Design:

  • 1 x 1" (25 mm) IDC II tweeter with UD Waveguide II for pristine high frequencies.
  • 1 x 4" (102 mm) IDC II midrange driver for dynamic midrange performance.
  • 1 x 9" (229 mm) RDT III bass driver for deep, full-bodied bass.

• Fully Sealed Back Box:

  • Creates an optimal air load for the drivers, ensuring reliable, consistent performance in any installation environment.
  • Reduces sound leakage by approximately 30 dB, ensuring superior isolation between rooms or floors.

• Mid-Frequency ‘Mid-Pod Array’:

  • Advanced design improves midrange clarity and dynamic performance.

• Patented Quik-Link Speaker Cable Connector:

  • Allows for faster, more reliable installation.

• Tri-Grip II System:

  • Offers an easy and secure fitment, making installations quicker and more robust.

Technical Specifications

• Frequency Range: 80 Hz – 35 kHz

• Compatible Amplifier Power: 45 – 180 W RMS

• Nominal Impedance: 6 ohms

• Sensitivity: 89 dB

• Maximum SPL: 122 dB

• Drivers:

  • 1 x 229 mm (9") RDT III bass driver
  • 1 x 102 mm (4") IDC II midrange driver
  • 1 x 25 mm (1") IDC II tweeter

• Enclosure Type: Closed

• Power Type: Passive

• Weight: 5.7 kg

Dimensions

• Cutout Diameter: 248 mm
• Mounting Depth: 178 mm
• Overall Depth: 181 mm
• Overall Diameter: 278 mm

Why Choose the C3L-CP?

The Monitor Audio C3L-CP in-ceiling speaker sets the standard for high-performance audio, offering exceptional sound quality and isolation in a compact, sealed design. With advanced features like the RDT III bass driver, IDC II midrange driver, and UD Waveguide II tweeter, this speaker ensures dynamic, high-fidelity sound across a wide range of frequencies. Whether for home cinema or stereo music applications, the C3L-CP delivers superior clarity and performance in any environment.

Upgrade your sound experience with Monitor Audio’s precision engineering and acoustic excellence.
