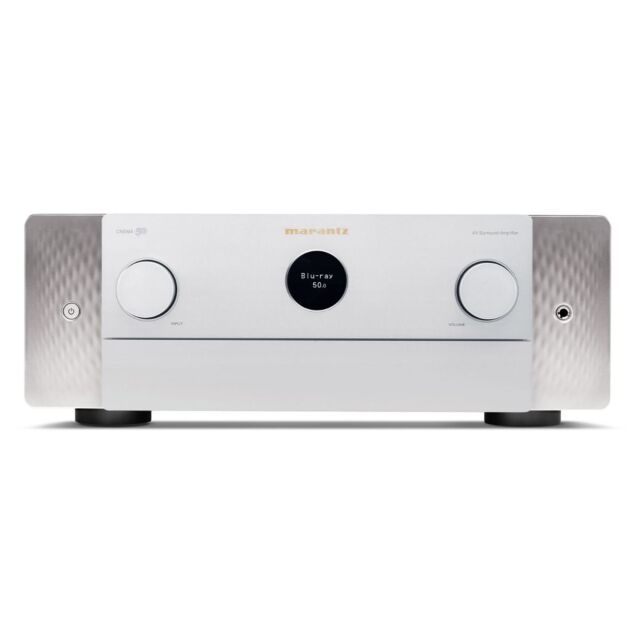

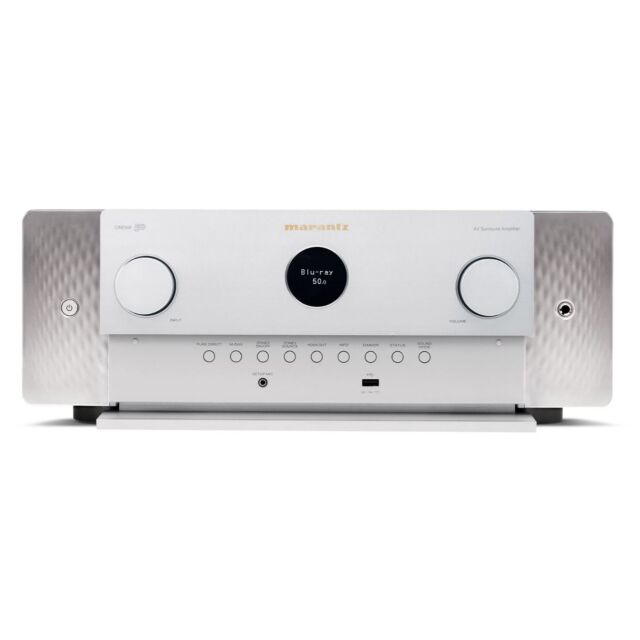

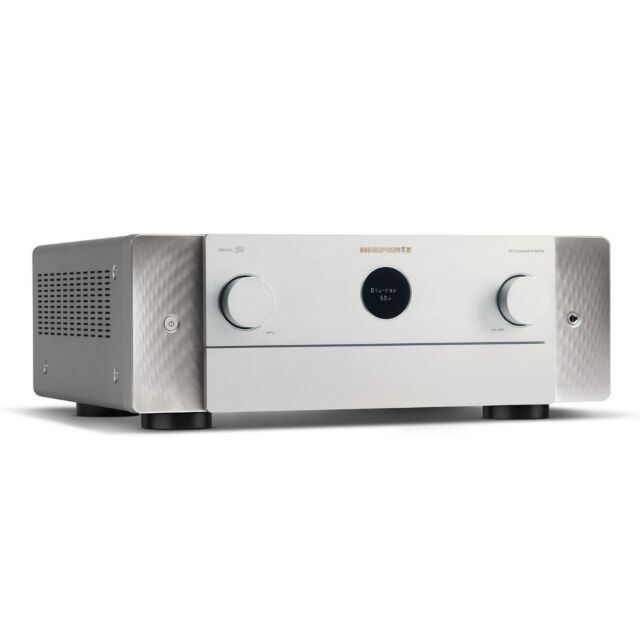

Marantz CINEMA50T1SG Cinema 50 9.4 Channel Av Receiver - Silver

Marantz Cinema 50 9.4 Channel Av Receiver - Silver

9.4 CHANNEL | 110 WATTS PER CHANNEL AV RECEIVER

Premium 9.4 channel 110-watt-per-channel amplification, Dolby Atmos, DTS:X, IMAX Enhanced and Auro 3D, 8K Ultra HD, and HEOS® Built-in streaming. CINEMA 50 is a powerful AV receiver for very high- performance home theatres.

Excellence Only Begins with Performance

Built upon decades of rich heritage, designed with timeless style, and engineered for utmost performance, Marantz CINEMA Series are the foundation of the world's most demanding home theatres.

Key Features

Peerless Performance

Immersive spaciousness, warm and rich tone, extraordinary detail and lifelike dynamics are legendary hallmarks of the Marantz sound.

Technology Leader

CINEMA 50 abounds with the latest immersive audio formats, 8K video, room optimisation, streaming, and more technology to simplify and elevate your enjoyment.

Exquisite Slimline Design

A modern expression of timeless design principles, CINEMA 50 features the iconic Marantz porthole, symmetrical design, and front panel controls elegantly hidden from view.

Specifications

POWER AMPLIFIER

Number of Powered Channels    9

Power Output (8 ohm, 20 Hz - 20 kHz, 0.08% 2ch Drive)    110W

Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive)    150 W

Power Output (6 ohm, 1 kHz, 10% 1ch Drive)    220 W

70% Guarantee    Yes

Discrete Power Amplifier    Yes

Amplifier Topology    Class A/B

Current Feedback Topology    Yes

Bi-Amp Drive    assignable

MULTICHANNEL SURROUND

DTS    DTS HD Master, DTS:X, DTS Neural:X, DTS Virtual:X

Dolby    Dolby TrueHD, Dolby Atmos, Dolby Atmos Height Virtualisation, Dolby Atmos Music, Dolby Surround

Other    IMAX Enhanced, Auro-3D, 360 Reality Audio, MPEG H, Multichannel Stereo

Max Number of Processing (Preamp) Channels    11.4

INPUTS/OUTPUTS

Composite In / Out    0 / 0

Component In / Out    0 / 0

HDMI In / Out    6 / 3

Multi-Room Video Out via HDMI    No / Yes

Analogue In / Fixed Level Out    6 in / 0 out

Phono (MM) In    Yes

Digital In: Optical / Coaxial    2 / 2

Multi-Room Out: analogue / digital    1 / 0

Multichannel Preamp Out    11.4

Subwoofer Out    4 (independent)

7.1 multichannel input    Yes

Number of Speaker Terminals    11

Speaker A / B    assignable

Multi-Room Speaker Terminal    assignable

Front Inputs    USB-A

USB Audio    Yes / No / No

FM Tuner with RDS    No

DAB+ Tuner    No

HDMI

Total HDMI Inputs / No. Support 8K    6 / 6

HDCP2.3 support    Yes

HDMI Outputs: Main / Zone    2 / 1

Analogue to HDMI Video Conversion    No

HDMI Upscaling    1080P/4K to 8K

Audio Return Channel    eARC

Video Dynamic Range    HDR / HLG / Dolby Vision / HDR10+ / Dynamic HDR

ALLM (Auto Low Latency Mode) Pass-through for gaming    Yes

Variable Refresh Rate / Quick Frame Transport    Yes / Yes / No

HDMI Pass-Through in Standby Mode    Yes

CEC    Yes

DSD Audio over HDMI    Yes

Auto LipSync    Yes

PERFORMANCE TECHNOLOGIES

Copper Plated Chassis    No

Toroidal Power Supply Transformer    No

Hyper Dynamic Amplifier Modules (HDAM) (List version)    Yes

Pure Direct Mode    Yes

Gold Plated RCA Terminals    Yes

Clock Jitter Reducer    Yes

ACOUSTIC/ROOM CORRECTION

Audyssey    MultEQ XT32

Audyssey Dynamic EQ / Dynamic Volume    Yes / Yes

Audyssey LFC    Yes / Yes

Dirac Live Support    Yes

Variable Cross Over    Yes

Optimised Bass Redirection    Yes

Bass Sync    Yes

MUSIC FILE SUPPORT

Lossy Formats    MP3 / WMA / AAC

Lossless formats    FLAC HD 192/24 / WAV 192/24 / ALAC 192/31

DSD Audio    2.8MHz / 5.6MHz

Gapless Playback    FLAC, WAV, ALAC, DSD

Compressed Audio Enhancer: MDAX2    Yes

Network Audio Sharing    Yes

STREAMING SERVICES

HEOS Multi-room and Streaming    Yes

AirPlay Audio Streaming    Airplay 2

Internet Radio    TuneIn

Spotify    Spotify Connect

Pandora    Yes

SiriusXM    Yes

Other Streaming Services    Amazon Music HD / Amazon Music / TIDAL / Deezer / Napster / Soundcloud / Mood Mix

Roon tested    Yes

NETWORK CONNECTIVITY

Ethernet Ports    Yes

Wi-Fi (include version / band)    Yes

Bluetooth (Include version)    Yes

Bluetooth Re-transmit for Bluetooth headphones    Yes

SMART HOME INTGERATION AND CONTROL

Voice Assistant Compatibility    Alexa / Google Voice Assistant / Apple HomePod

App for Smart Phones & Tablets (iOS & Android)    Marantz AVR App

HEOS Multi-Room Integrated    Yes

HEOS Link Compatibility: IR/ IP    Yes / Yes

Multi-Room zones    2

Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analogue    2 Ch / 2 Ch / Yes / Yes

Zone Audio Output: Speaker / Preout    Yes / Yes

Zone HDMI Output from HDMI Source    Yes

Control Connectivity    IP Control / RS232 Control / Web Control / App Control

IR Flasher In    Yes

Marantz Remote Bus    Yes

DC Trigger Output    1

HDMI Diagnostics    Yes

OTHERS

Front Display    port hole OLED

GUI Languages    9

Setup Assistant    Yes

Smart Select on Remote    Yes

Firmware Update by Network / USB    Yes / Yes

ECO Mode    Yes

Auto Power off    Yes

Sleep Timer    Yes

GENERAL

Available Colours    Black/Silver-Gold

Metal Front Panel    Yes

System Remote Control    RC-049SR

Power Consumption in W    680

Power Consumption No-Sound (ECO on/off) in W    60 W / 100 W

Standby Consumption in W    0.2

CEC Standby Consumption in W    0.5

Network Standby Consumption in W    Less than 2.0

Maximum Dimensions (W x D x H) mm    Antenna Horizontal: 442 x 404 x 165

Antenna Vertical : 442 x 404 x 235

w/o Antenna: 442 x 392 x 165

Weight in kg    13.5

What's in the box    Main unit, remote control, batteries, wire labels, quick start guide, Audyssey microphone, microphone stand, 2 External Detachable Antenna, AC cord
