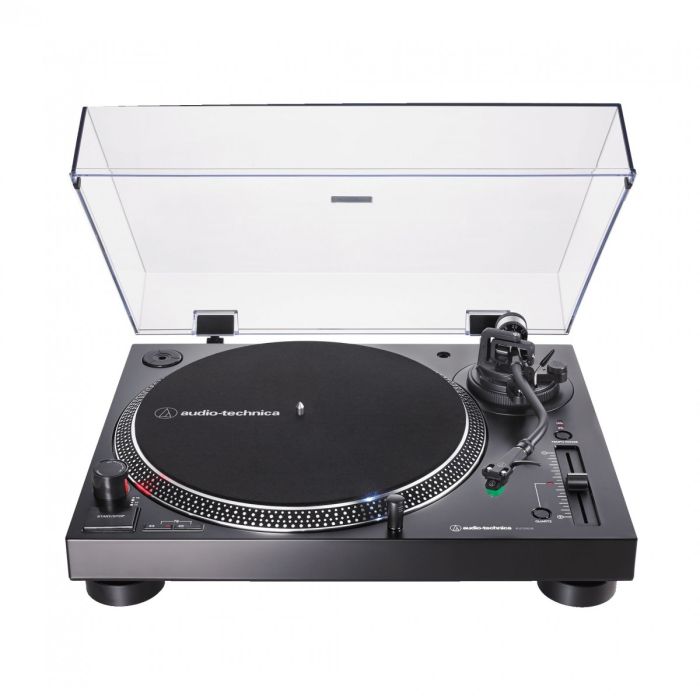

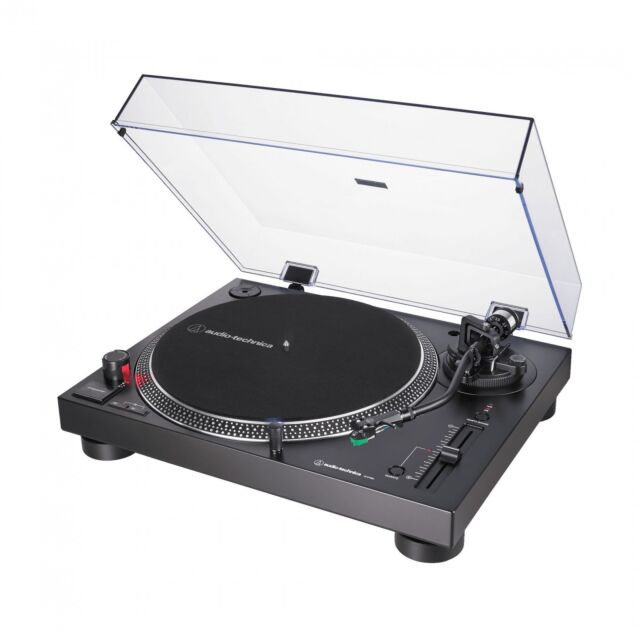

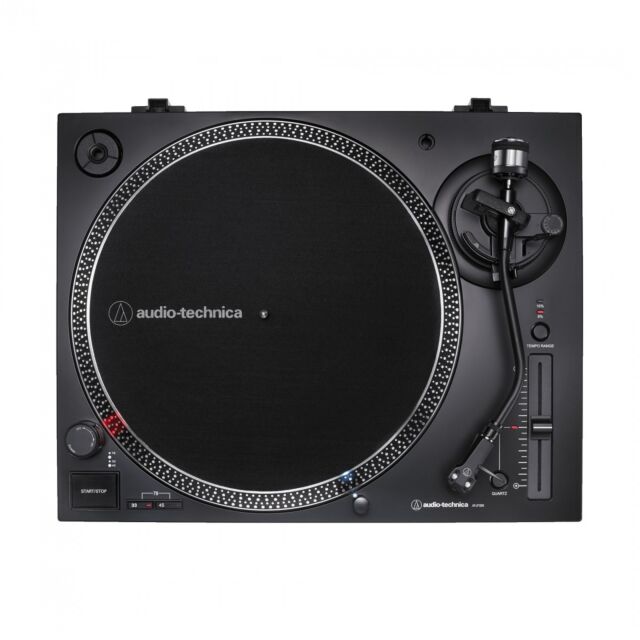

Audio-Technica AT-LP120XUSB Professional Direct-Drive Turntable in Black

Audio-Technica AT-LP120XUSB Direct-Drive Turntable – Black

Key Features:

• Precision-engineered direct-drive motor with enhanced DC servo control
• Fully manual operation for complete user control
• Dynamic anti-skate adjustment for accurate tracking
• Three-speed capability: 33⅓, 45, and 78 RPM
• USB output for easy vinyl-to-digital conversion
• Built-in phono preamp with selectable output options

Product Overview:

The AT-LP120XUSB is an upgraded version of its predecessor, offering advanced performance for vinyl enthusiasts. Featuring a newly designed DC servo direct-drive motor, this turntable delivers consistent rotation speed across all playback modes. Its fully manual design allows precise control, while the dynamic anti-skate system ensures smooth, distortion-free tracking.

With a built-in phono preamplifier, this model can be connected directly to powered speakers or home audio systems, whether they have a dedicated phono input or not. Additionally, the USB output provides a seamless way to convert records into high-quality digital files—simply connect to a computer, download recording software, and archive your collection.

The S-shaped tonearm is designed for precision, featuring an adjustable counterweight and an AT-HS6 headshell fitted with an AT-VM95E phono cartridge. The included 0.3 x 0.7 mil elliptical stylus is also compatible with any VM95 Series replacement stylus, allowing customization based on preference and application.

Additional features include a die-cast aluminum platter with a felt slip mat, a high-precision quartz-controlled pitch lock, adjustable pitch control with ±8% or ±16% settings, a stroboscopic speed indicator, and a detachable stylus target light for low-light use.

Technical Specifications:

• Operation Type: Fully manual, three-speed
• Motor Type: DC servo-driven direct drive
• Speed Options: 33⅓, 45, and 78 RPM
• Platter Material: Die-cast aluminum
• Torque Rating: >1.0 kgf.cm
• Braking System: Electronic brake
• Wow & Flutter: <0.2% (WTD) at 3 kHz (JIS)
• Signal-to-Noise Ratio: >50 dB
• Output Levels:
  • Phono Mode: 4 mV nominal at 1 kHz
  • Line Mode: 240 mV nominal at 1 kHz
• Phono Preamp Gain: 36 dB (RIAA equalized)
• USB Compatibility:
  • Supports PC & Mac via USB 1.1 or higher
  • Compatible with Windows 7+ and macOS X+
  • A/D & D/A conversion at 16-bit/44.1 kHz or 48 kHz
• Power Requirements: 100-240V AC, 50/60Hz, 1.5A max
• Size (WxDxH): 452mm x 352mm x 141.6mm
• Weight: 8 kg (17.6 lbs)

Included Accessories:

• AT-VM95E phono cartridge
• AT-HS6 headshell

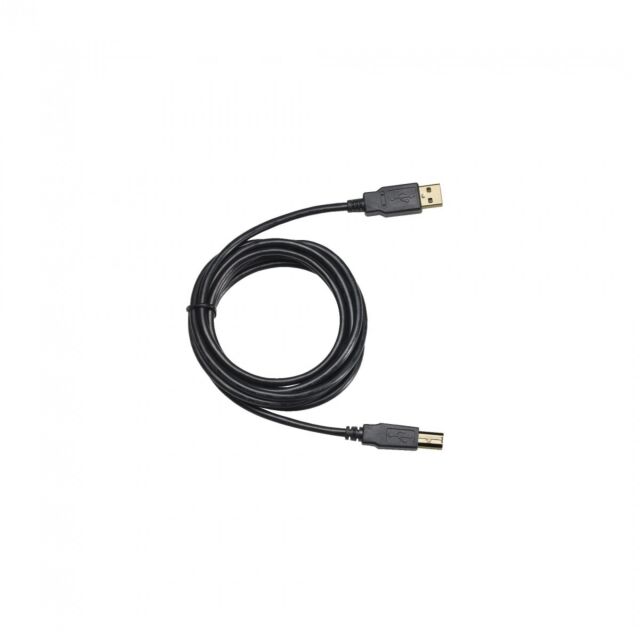

• 1.9m USB cable
• RCA stereo cable with ground wire
• Adjustable counterweight
• Felt slip mat
• Removable dust cover
• 45 RPM adapter
• Plug-in stylus target light

Tonearm & Cartridge Details:

• Tonearm Type: S-shaped with balanced counterweight
• Effective Length: 230.5mm
• Overhang: 16mm
• Tracking Error: Less than 3°
• Cartridge Compatibility: Supports weights from 3.5g to 8.5g
• Anti-Skate Range: 0-4g
• Replacement Stylus: AT-VMN95E

System Requirements for USB Recording:

• PC or Mac with an available USB port (USB 1.1 or higher)
• Compatible with Windows 7+ and macOS X+

Whether you're rediscovering classic records or digitizing your collection, the AT-LP120XUSB delivers professional-quality sound with modern convenience.
