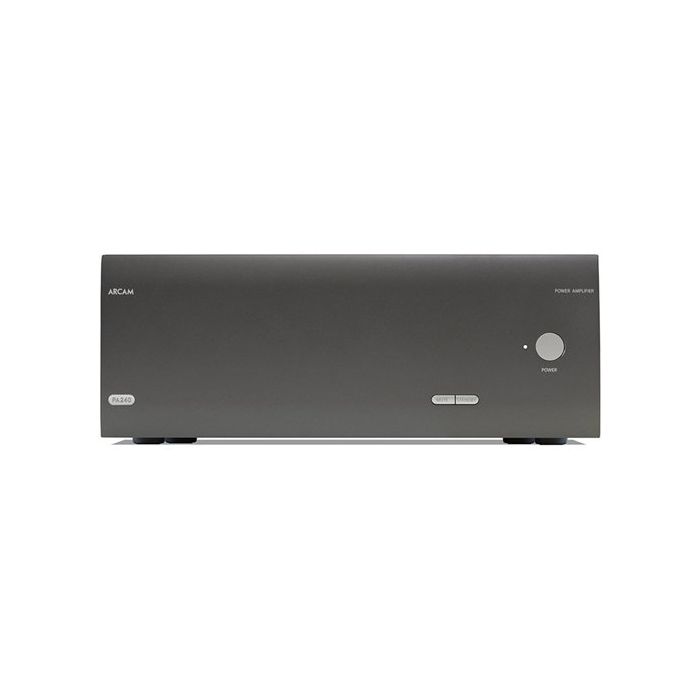

Arcam PA240 Class G Power Amplifier

Arcam PA240 Class G Power Amplifier: Exceptional Power and Flexibility for Audiophiles

The Arcam PA240 is an expertly designed 2-channel power amplifier, delivering 380W per channel of Class G amplification for refined, high-output performance. With its ability to operate in Stereo, Dual Mono, or Bridged mode, the PA240 is adaptable for various audio setups, offering a versatile and powerful solution for those seeking exceptional clarity and dynamic range. The advanced Class G architecture ensures that it achieves the rich, distortion-free sound associated with Class A amplification while maintaining the power efficiency of Class AB.

Unleash High Fidelity Audio with Class G Amplification

The PA240 delivers precise and clean sound at any volume level, thanks to its Class G circuitry with 50W of Class A operation before shifting to Class AB. This design not only provides remarkable efficiency but also maintains audio integrity for an immersive listening experience. The toroidal transformer further enhances performance, supplying clean power and minimizing noise interference.

Key Features

• 2-Channel High-Power Amplifier: Ideal for both stereo and home theater applications.
• 380W Class G Amplification per Channel: Robust power output for demanding audio requirements.
• Bridged Mode: Delivers up to 790W of Class G amplification, perfect for high-powered mono applications.
• Flexible Operation Modes: Choose between Stereo, Dual Mono, and Bridged to suit various setups.
• High-Quality Components: Equipped with a toroidal transformer and high-precision circuitry for low noise and high fidelity.
• RCA and XLR Inputs: Offers switchable input options to accommodate diverse setups.
• Ethernet and RS232 Control: Integration-ready for smart home systems and custom installations.

Detailed Specifications

Performance

• Power Output:
  • 2 channels driven: 380W into 4Ω / 225W into 8Ω (20Hz – 20kHz)
  • Bridged mode: 790W into 8Ω (20Hz – 20kHz)
• Harmonic Distortion: 0.001% at 80% power, 8Ω (1kHz)
• Frequency Response: 20Hz - 20kHz, ±0.05dB
• Signal-to-Noise Ratio: 110dB at 50W/8Ω, ensuring minimal background noise and maximum detail.

Inputs and Connectivity

• Input Options: Switchable RCA and balanced XLR
  • RCA input sensitivity: 1.15V RMS (200W/8Ω)
  • XLR input sensitivity: 2.3V RMS (200W/8Ω)
  • Input impedance: 10kΩ

Power and Dimensions

• Power Requirements: 110-120V or 220-240V, 50-60Hz
• Maximum Power Consumption: 1.5kW
• Dimensions: 433 x 425 x 177mm (W x D x H, including feet and terminals)
• Weight: 18kg (net), 19.7kg (packed)

Why the Arcam PA240 Stands Out

The Arcam PA240 blends high power with the refinement of Class G technology, making it an exceptional choice for discerning listeners. Its flexibility in operation modes, combined with robust power output and low distortion, allows it to excel in a range of audio environments—from dedicated stereo setups to high-performance home theaters. Designed for those who seek both power and purity, the Arcam PA240 is a true achievement in audio amplification.
